Product Description

Process configuration of 120 meter single-sided Corrugated Cardboard Production Line：

1. Maximum production width: 1400-2200mm

Design speed: 150m/min

Economic speed: 100-120m/min

Note: The paper used for production line speed testing should meet the following requirements: (The surface temperature of the equipment should not be lower than 172 ℃ or above)

The grade of the base paper shall not be lower than Grade B. The moisture content of the base paper is approximately 11% ± 2%

* Face paper: 100-250g/m2 * Core paper: 100-180g/m2

2. Corrugated combination: A, C, B, E (or customer's choice)

3. Steam volume is about 500Kg/Hr, maximum pressure: 1.2Mpa, commonly used pressure: 0.8-1.1Mpa

4. Power supply: 380V 50Hz three-phase four wire system

5. Total installed power of the equipment: about 90KW Actual power consumption: about 30KW

6. Equipment footprint: approximately 30m x 11m x 5m (specific length subject to foundation drawing)

7. Equipment paper output direction: Determine whether the transmission is left or right based on the user's factory building

Process configuration of a 180 meter single-sided corrugated cardboard production line：

Main technical parameters and requirements of the production line:

1. Maximum production width: 2200mm

2. Design production speed: 200m/min

3.Economic speed: 100-180m/min

4. Steam volume approximately: 500Kg/Hr

Note: The above speed indicators must meet the production width of 2200mm, meet the following paper standards, and ensure that the surface temperature of the heated parts of the equipment is at 175 ℃.

5-sided paper index: 100g/㎡ --180g/㎡ Environmental pressure index (N.m/g) ≥ 8 (moisture content 8-10%)

6-core paper index: 80g/㎡ --160g/㎡ Environmental pressure index (N.m/g) ≥ 5.5 (moisture content 8-10%)

7. Power demand: AC380V 50Hz 3PH, installed capacity ≈ 100KW, common power ≈ 50KW

8 Compressed air: maximum pressure 8kg/cm2, commonly used pressure 5-7kg/cm2, dosage 1m ³/min

9 Occupancy space: ≈ Lmin40m * Wmin10m * Hmin5m (actual subject to the approved drawings provided by Party B)

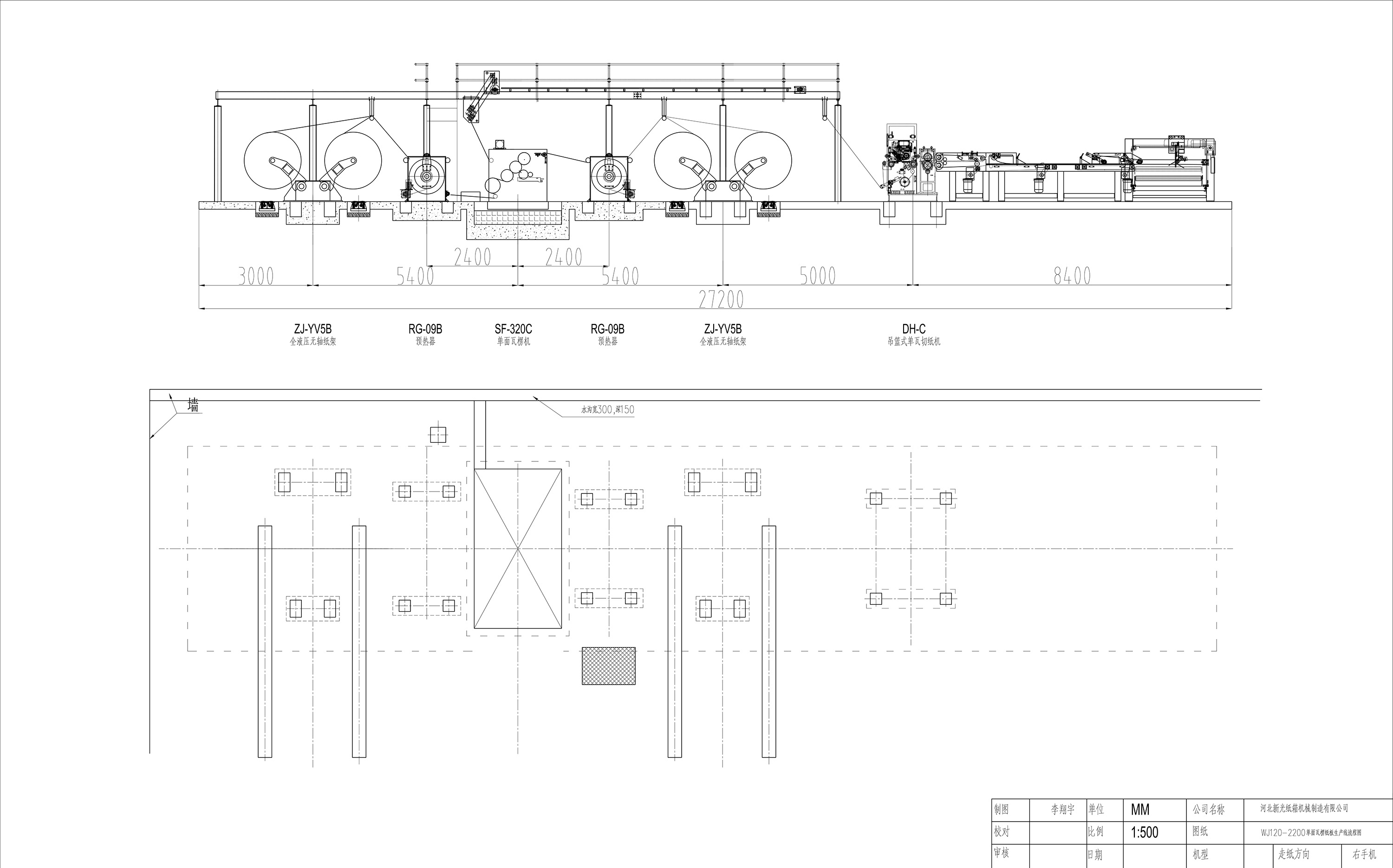

Configuration of single-sided corrugated cardboard production line：

Specification And Model	Device Name	Quantity
ZJ-V5B	Fully hydraulic shaftless paper rack	2 units
DXC	Electric paper loading trolley	4 units
JZJ	Fully automatic paper feeder	2 units

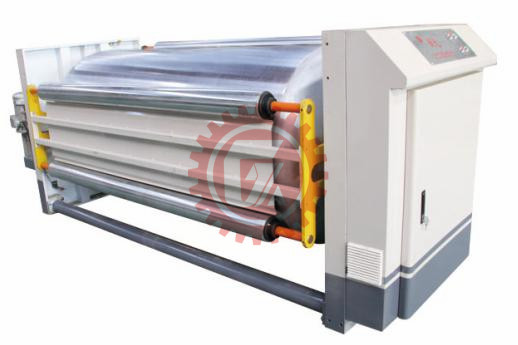

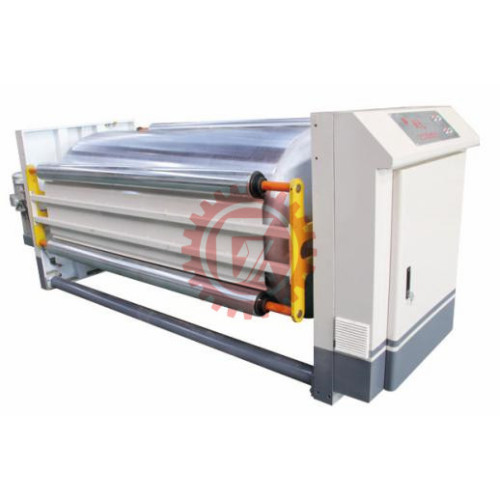

RG-1-900	Preheating cylinder	2 units
SF-360E	Drawer type single-sided corrugated machine	1 units
MK-360	Tile roller quick change module	1 units
DY-C	Electric hydraulic roller changing forklift	1 units
ZDF	Conveying over the bridge	1 set
DHE-180	Single tile longitudinal and transverse paper cutting machine (spiral knife transverse cutting, fully servo longitudinal cutting, hanging basket stacking)	1 units

Single Sided Corrugated Cardboard Making Machine

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
