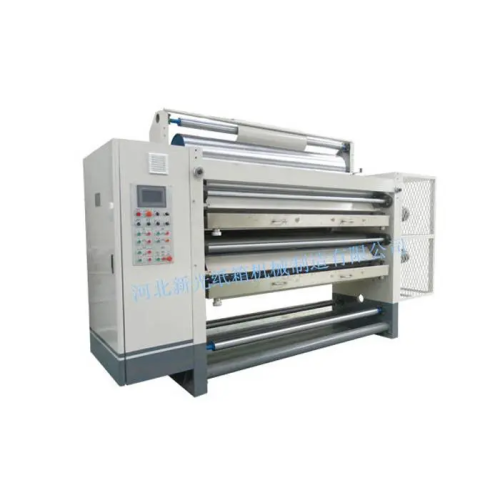

Glue Machine GM-30 for Sale

Get Latest Price

Payment Type:	T/T
Incoterm:	FOB,CIF
Min. Order:	1 Others
Transportation:	Ocean
Port:	Qingdao Port,Tianjin Port

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Structural feature：

after quenched of the glue roller surface,the hole machining, surface grinding and doing balancing engraved anilox pit type, coating evenly, less consumption of plastic
glue roller turns is controlled by the frequency motor，by inverter control ensures glue roller line speed synchronous machine with double machine，they can operate independently.
electric adjustment display the glue amount.Automatic cycle for glue, glue avoid sedimentation, viscosity stability.
Pneumatic structure platen gap by electric tuning.On the next floor are made independent variable frequency motor drive.
take the speed signal of the double facer,so as to synchronous operation with it. Man-machine interface display, easy operation
amount of glue automatic adjustment control，amount of glue automatic adjustment with the produce speed, in automatic mode, you can also get in manual tuning.

Technical parameters：

1、MAX. effective width：2500mm

2、operation direction：left or right（Determined in accordance with the customer’s facility)

3、The highest design speed：300m/min

4、air source system：0.4—0.9Mpa

5、temperature range of the preheater：150—200℃

6、steam pressure：1.12—1.3Mpa

Roller diameter parameters：

1、glue roller：￠320mm doctor roller：￠153mm

2、 upper preheat roller：￠402mm pass the paper roller：￠110mm

Power motors and electrical parameters：

1、glue roller initiative frequency motor：3.7KW*2　380V　50Hz　Continuous (S1)　working standard

2、Electrical adjusting glue pushrod:90W　24V　short（S2）working system

3、Electrical pressure roller gap pushrod:90W　24V　short（S2）working system

4、glue pump motor:2.2KW　380V　50Hz　Continuous （S1）working system

Mainly purchased parts, raw materials and origin：

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
