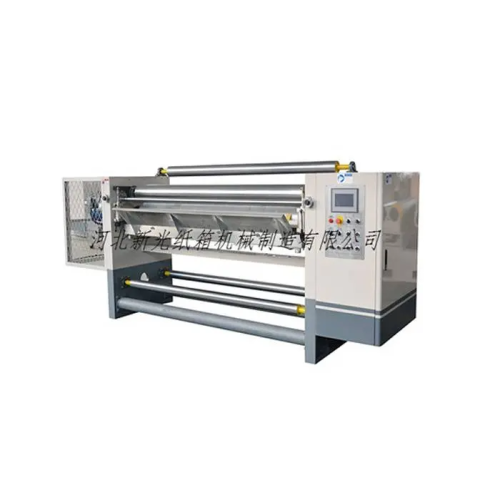

Glue Machine GM-12 for sale

Get Latest Price

Payment Type:	T/T
Incoterm:	FOB,CIF
Min. Order:	1 Others
Transportation:	Ocean
Port:	Qingdao Port,Tianjin Port

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

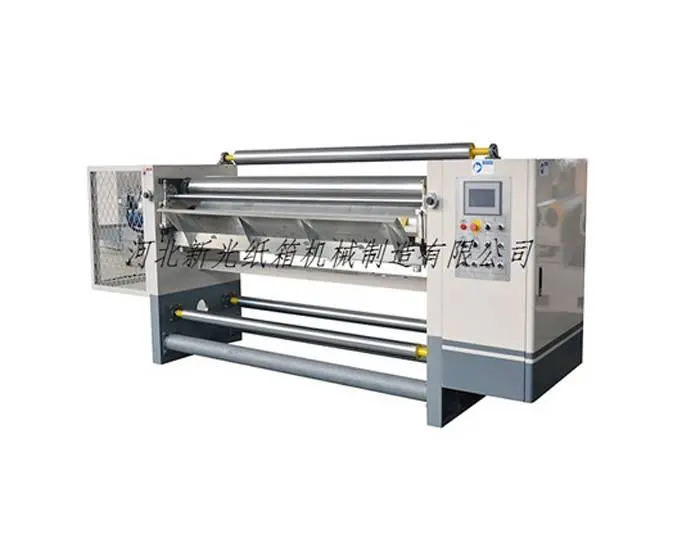

Structural features：

After the glue roller surface after quenching inner hole machining, grinding and dynamic balancing surface engraved with pit style textured, coating evenly, less consumption of plastic.
doctor roller surface by grinding and hard chromium plating.
other guide rollers with hard chrome plated.
Pressure roller with pneumatic lift, easy operation.
manually adjust scraping gap.
glue roller ¢ 215mm、Doctor roll¢ 122mm、press paper roller¢ 122mm、preheat roller¢ 270mm.
Electrical design, construction production process, follow the national standards, low failure rate, easy maintenance.

Technical parameters：

1、glue roller diameter：￠215mm

doctor roller diameter：￠122mm

2、lower preheating roll diameter：￠270mm

under preheat roller diameter：￠270mm

3、 Over the paper roll diameter：￠85mm

Roller diameter parameters：

1.Main corrugated roller：￠405mm vice corrugated roller ：￠428m

2、pressure roller：￠495mm glue roller：￠318mm

3、Fixed paste roller：￠173mm preheat roller：￠400mm

Powered motor parameters：

1、glue roller initiative frequency motor：3KW 380V 50Hz Continuous (S1) working standard

2、glue pump motor： 2.2KW 380V 50Hz Continuous （S1）working system

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
