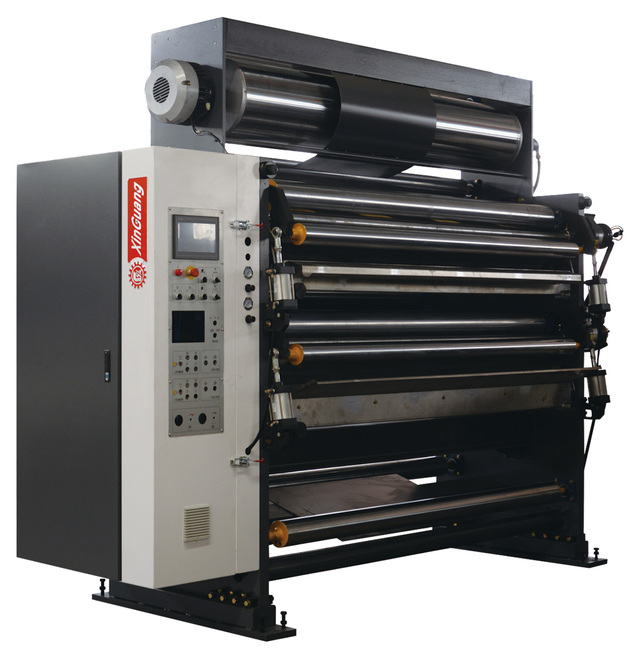

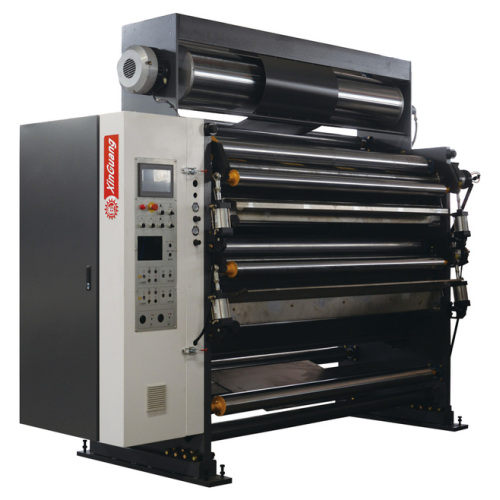

GM-35 Two-layer Gluing Machine

Get Latest Price

Payment Type:	T/T
Incoterm:	FOB,CIF
Min. Order:	1 Others
Transportation:	Ocean
Port:	Qingdao Port,Tianjin Port

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Technical parameters:

Working width: 2500mm
Design speed: 350m/min
Economic speed: 180-280m/min
Adjustment range of adhesive amount: 0.08-0.6mm
Glue roller mesh number: 40 lines
Preheating cylinder temperature range: 150-200 ℃
Working power supply: 380V 50Hz 15KW
Air source system: 0.4-0.9Mpa
Compression method: pneumatic

Main performance characteristics:

The second layer gluing machine is used to transport corrugated paper from the overpass, preheat and heat it up, apply glue again, and then enter the double-sided machine for gelatinization and bonding, producing three layers and five layers of cardboard.
The frame has a cast iron structure and stable performance. The diameter of the upper and middle preheaters is 400mm, which increases the paper temperature for easy glue gelatinization. The double pressure roller design ensures even glue coating, and the stainless steel glue tank automa
tically circulates the glue supply.
After the surface of the glue roller is quenched and tempered, the inner hole is processed, and the dynamic balance surface is finely ground and engraved with concave mesh patterns. Large diameter uniform glue roller dynamic balance treatment, copper plate scraping, uniform and consistent gluing, saving glue and steam, and smooth cardboard
The transmission of the adhesive unit is controlled by a servo motor through a reducer directly connected structure, and the linear speed of the adhesive roller is synchronized with the double-sided machine through frequency conversion control, which can also operate independently. Using angle sensors, PLC, and touch screen human-machine interface display. Automatically control the amount of glue according to different paper types and vehicle speeds, and adjust the gap between the pressure rollers according to different corrugations without accumulating errors.

Main component parameters:

Component name and process	specifications	surface treatment
Gluing roller	￠320mm	Circular grinding embossed chrome plating
Uniform rubber roller	￠195mm	Round grinding chrome plating
Pressure roller	￠155mm	Round grinding chrome plating
Paper axis	￠128mm	Round grinding chrome plating
Preheating cylinder (2 off)	￠400mm	Round grinding chrome plating

Main power parameters:

name	power	voltage	frequency
Active servo motor for glue roller	5.5KW*2	380V	50HZ
Glue adjustment servo reducer	200W	380V	50HZ
	200W	380V	50HZ

Main component brands and origin:

Number	Main component name	Brand or place of origin	Remarks
01	Glue roller and adhesive roller	Tiangang Production	45 steel quenching and tempering
02	Preheating roller	Tiangang or Jigang	Q235B container plate
03	bearing	Japan NSK
04	Seat bearing	Fujian Fushan	FSB
05	Pneumatic components	Taiwan Yadeke AirTac
06	Low voltage electrical appliances	SIEMENS	Contactor, relay, button
07	Glue mixing reducer	Taiwan City State or Wanxin
08	Main reducer	Taiwan City State or Wanxin
09	touch screen	Taiwan Vinylon or Kunlun Tongtai	10.4 inches
10	PLC and frequency converter, server	SIEMENS
11	Synchronous belt	OPTIBELT
12	Drain valve	Beijing Drain Valve Factory	Floating ball type

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
