| Item | Parameters |

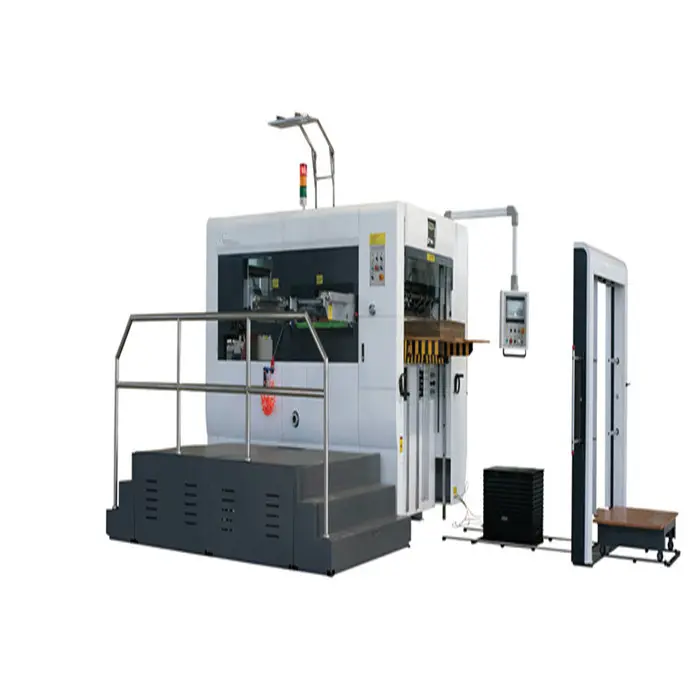

| Model | BMY-1300 |
| Die cutting type | Pressed flat die cutting(Lower side is movable while upper side is unmovable) |
| Max paper transmitting size | 1320*980mm |
| Min paper transmitting size | 400*500mm |
| Max die cutting size | 1300*960mm |
| Min gripper size | 8mm |
| Max die cutting pressure | 350N/cm² |
| Paper processed | Cardboard 200-2000 gsm
Corrugated board ≦ 10mm |
| Max die cutting speed | 4600 sheets/h |
| Max feeding pile height | 1400mm(above the level) |
| Min feeding pile height | 1250mm(above the level) |
| Main motor power | 11 kw |
| Total power | ～13.5 kw |
| Total weight | ～13.5 T |
| Overall size | 4500*2300*2250mm
(without platform and pre-paper) |
| 6500*4300*2250 |
Feeding and Collecting Part
l Whole machine is risen making the maximum front pile height up to 1400mm and the back pile height up to 1250mm
l At the middle of head install the monitor ，worker can easily see the back
l Pre-paper pile design and special pneumatic bench can save much time
l The non-stop sampling system can check the board accurate without stop the machine
Main body
l Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI
l Patented design shock absorption system can prolong the life of main body and increase the pressure
l The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack
Diecutting part and Delivery system
l Diecutting chase fixed accurately by pneumatic lock system
l Diecutting plate is putted in and out by air floating device
l Electric clutch system of main chain can assure the chain steady when it is stopped at high speed
l Main chain and assist chain is lubricated periodically controlled by PLC
l Protection window of diecutting can hold the main body clean
Lightweight and durable aluminum alloy gripper bars with chain of Renold UK or IWIS GERMANY ensure accurate
