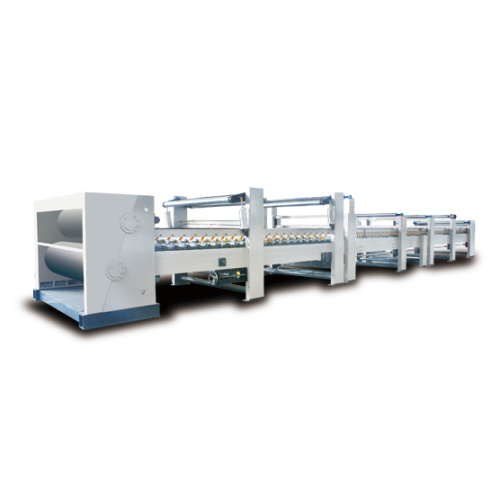

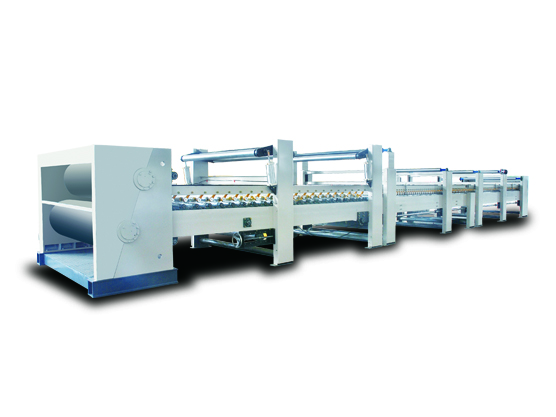

Double Facer Corrugation Machine SM-10

Get Latest Price

Payment Type:	T/T
Incoterm:	FOB,CIF
Min. Order:	1 Others
Transportation:	Ocean
Port:	Qingdao Port,Tianjin Port

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Structural features：

Heating plate surface by grinding treatment, hot plate width 600mm, a total of 12 heating plate and cooling 4 m。
Heating plate with a container board production, in line with national standards for a class pressure vessel, with pressure vessel certificate and inspection certificate。
Hot plate with intensive gravitational roll structure. Roll adopt pneumatic lifting.
Heating plate heat transfer pipe temperature control sub-four-segment, with a temperature display.
on cotton use two-cylinder S type cotton belt with the tensioning device.
lower belt adopt pneumatic tensioning.
Drive roller coated with attached wear-resistant rubber ，showed a herringbone structure，With a high, ensure smooth cardboard output。
Main drive motor for frequency conversion motor，low-speed torque，wide speed range ,reliable, and easy maintenance.
hot plate internal for partition isolation structure,s-shaped flow of steam，Steam, water separation function significantly improves the utilization of steam。

Technical parameters：

1、temperature requirement：160—200℃ steam pressure：0.8-1.3Mpa

2、air source pressure：0.6—0.9Mpa

3、Cooling stereotypes length：4m Heating plate quantity：12 pieces

4、hydraulic system pressure：6—8Mpa

Roller diameter parameters：

1、upper drive rubber roller diameter：￠475mm　lower drive rubber roller diameter：￠350mm　Wear rubber Outsourcing

2、Former follower with roller diameter：￠176mm　back setting belt driven roller diameter：￠176mm

3、Platen roller：￠85mm　Setting roller diameter：￠86mm

4、upper belt tension roller diameter：￠155mm　upper roll diameter with detuning：￠124mm

5、Lower belt tension roller diameter：￠130mm　Entrusted with the roll diameter lower belt：￠130mm

Note: All the roller surface after grinding are hard chrome plated

Powered motor parameters：

1、Main drive motor power：22KW　380V　50Hz　Continuous (S1) working standard

Mainly purchased parts, raw materials and origin：

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
