Product Description

Structural features：

surface of hot plate is dealed with grinding, hot plate width600mm，Minister cooling stereotypes 5m。
Hot plate is made adopt container board, enclosed pressure container certificate and inspection certificate。Internal thermal panels for partition isolation structure，s-shaped flow of steam, Steam, water separation function apparent，improve the using rate of steam。
upper conveying belt adopt pneumatic correction.
piping thermal heating plate temperature control points three sections with temperature display。
upper conveying belt adopt pneumatic correction.
Drive roller coated with wear-resistant rubber attached, and with the high output ensure smooth cardboard。
Gearbox drive unit using an independent structure, gear steel ZG-500 number for materials, the use of oil-immersed gear lubrication。
Electrical components used internationally renowned brands, the device stable and reliable operation。
Main drive motor for the motor frequency energy, low-speed torque, wide speed range, reliable, easy maintenance。
The main backbone of high intensity profiles GB, solid structure, beautiful appearance, suitable for high speed working

Technical parameters：

1、effective width：2500mm

2、operation direction：left or right（determined in accordance with customer’s factory building)

3、MAX machinery speed：250m/min

4、temperature range：160—200℃

steam pressure：0.8-1.3Mpa

5、air source pressure： 0.6—0.9Mpa

6、quantity of heat plate：20 pieces

Roller diameter parameters：

1、up drive rubber roller diameter：￠800mm　bottom drive rubber roller diameter：￠600mm　outsourcing wear rubber

2、Former follower with roller diameter：￠215mm　After setting the driven belt rollers diameter ：￠215mm

3、pressure belt roller diameter：￠70mm　Shaping roller diameter：￠86mm

4、The up belt tension roller diameter：￠155mm　up belt detuning roller diameter：￠130mm

5、lower belt tension roller diameter：￠155mm

Note: All the roller surface after grinding are hard chrome plated

Powered motor parameters：

1、main drive motor power：75KW frequency motor　380V　50Hz　continuous（S1）working system

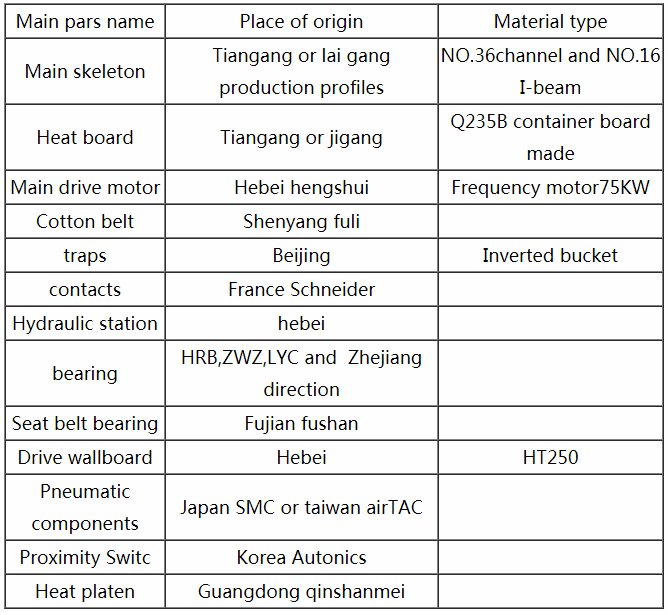

Mainly purchased parts, raw materials and origin：

Corrugated Board Heating And Laminating Machi

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
