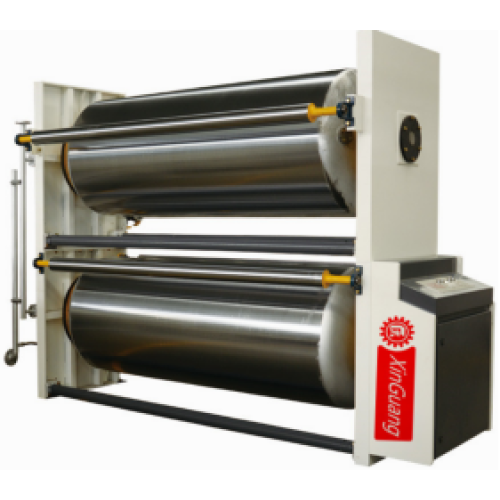

RG 09B-2 Double Preheater

Get Latest Price

Min. Order:

1 Others

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Technical parameters：

Working wide :2200mm

Diameter of preheat roller :￠900mm

Angle adjustment range: 270°

Angle shaft diameter :￠110mm×2

Steam temperature: 200℃

Steam pressure: 1.2Mpa

Working power :380V 50Hz 3PH

Motor power :250W short（S2）working system

Structural feature：

Used for preheating single-sided corrugated paper and tissue paper to increase temperature, facilitate bonding, control moisture, and smooth cardboard.
Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.
Electric adjustment angle, and angle can rotation adjustment the preheat area in the range of 360°.
The preheating roller adopts the flat head design, which complies with the national standard of Class I pressure vessels, and is accompanied by a pressure vessel certificate.

Mainly purchased parts, raw materials and origin:

Serial number	Name of main parts	Brands or place of origin	Remarks
01	Framework	Tang Steel Profile	Welded parts stress relief
02	Steam rotation joint	Quanzhou yujie
03	Preheater	Hangang or jigang	Q235Bpressure container board
04	Seat belt bearing	FuJian FGJ
05	RV Reducer	Taiwan city-state or Wanxin	RV75
06	Main electrical appliances	SIEMENS	Contactor, relay, button
07	Trap	BeiJing	Float

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
