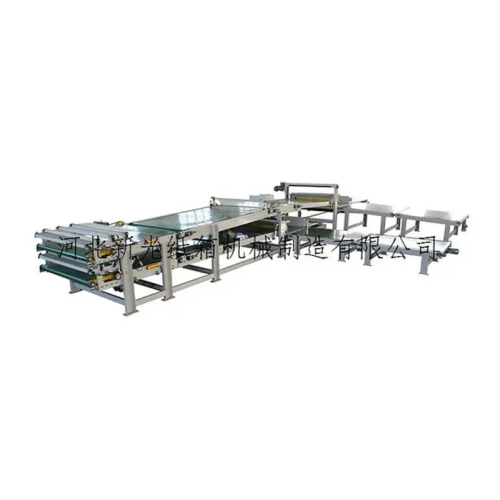

Cardboard Machinery Stacker DM-XLM

Get Latest Price

Min. Order:

1 Others

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

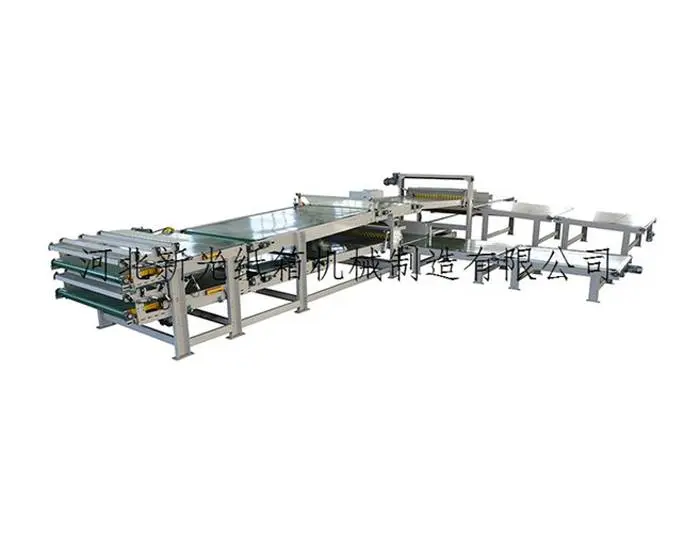

Structural feature：

Gantry stacking.Changing single time is 5seconds，automatic counting, automatic cross out automatically for a single.
Synchronized with the production management system，order mangement，Centralized management，do not slow down automatically for a single.
Crawler stacking platform，AC servo control movements，Stacking smooth, neat;
When stacking reaches a set number of automatic frequency control smooth laterally out of paper；
Tailgate AC servo control positioning for a single automatic, rapid, precise adjustment；
Tailgate automatically shift for small orders stacking；
Delivery side of the standard electric transport planes, and duplex trolley.
Independent sealed control cabinets, electrical equipment operating under clean environment；
Color touch-screen display for easy on-site operation.
Fully automatic operation control, improve efficiency and save manpower, reduce labor intensity；

Technical parameters：

effective width：1400mm
total power:17KW
MAX. working speed：200m/min
The maximum stack height：250mm
The maximum stack length：3500 mm

powered motor and electrical appliances parameters：
1、main transport motor：3KW　3sets　frequency speed adjust motor
2、transverse output motor：1.5KW　frequency speed adjust motor
3、Walking baffles motor：0.55KW　frequency speed adjust motor
4、Lift motor： 3KW　frequency speed adjust motor

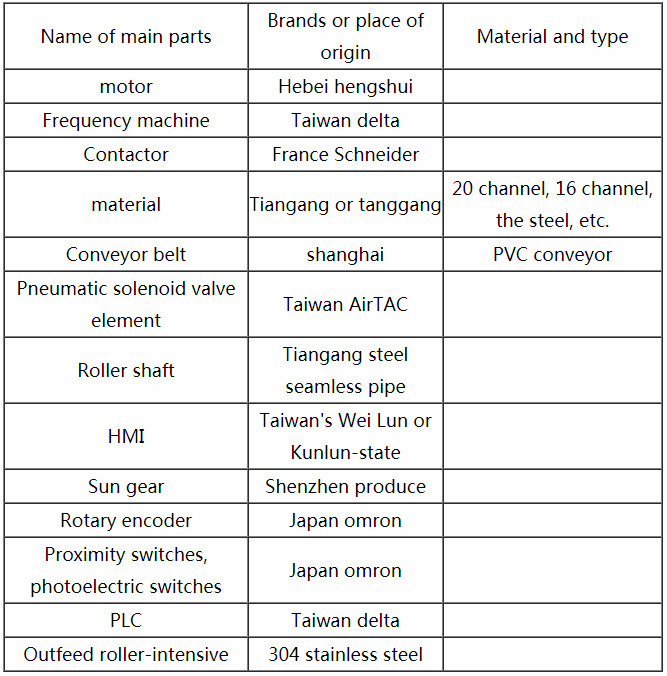

Mainly purchased parts, raw materials and origin

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
