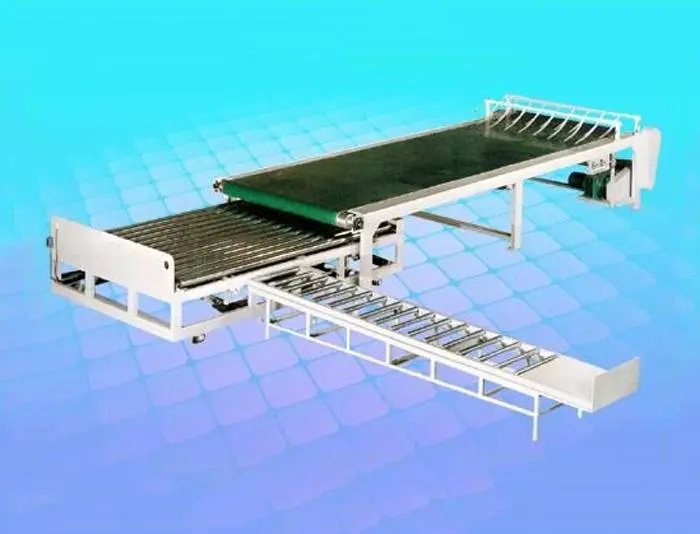

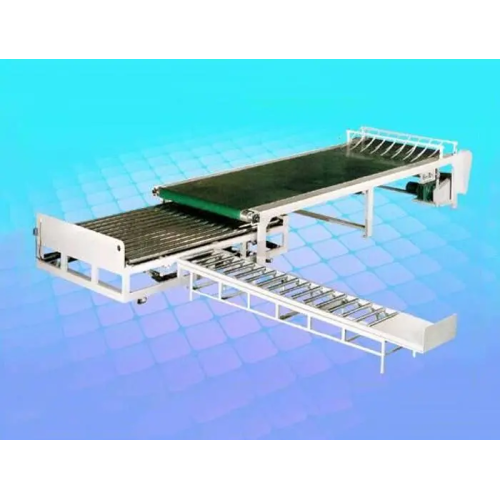

Cardboard Machinery Stacker DMT-120

Get Latest Price

Min. Order:

1 Others

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Structural feature：
★Adopted on the 16th channel welded。Electric adjustment of cardboard the size of the lateral output pneumatic control board, electrically adjustable conveyor speed.
★Cardboard sheets to the desired number or height requirements will be controlled by a foot switch out of cardboard.
★Vertical bin using wide flat belt conveyor transport.

Technical parameters：
1、The maximum accumulation length：3000mm
2、The maximum stack height：200mm

Powered motor parameters：
1、Main conveyor motor：3KW adopt frenquency motor
2、Lateral output of the motor：1.5KW　Three-phase asynchronous motor
3、Walking Motor：1.5KW Three-phase asynchronous motor

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
