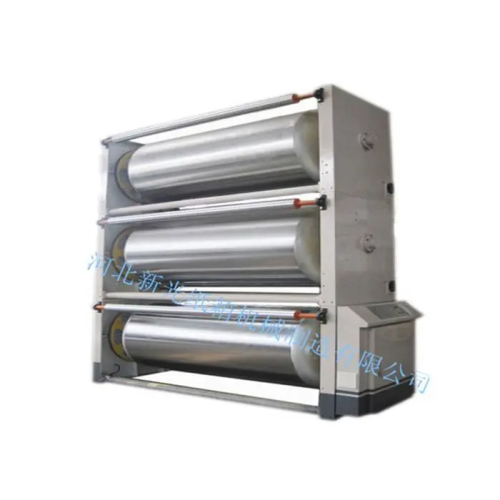

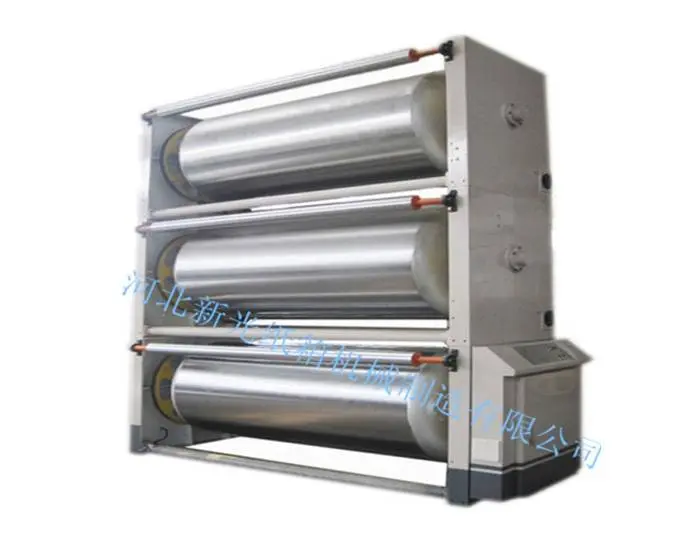

Preheater For Corrugated Cardboard Making Machine

Structural features：

★Preheat roller accord with the national standard of the pressure vessal，and enclosed the pressure container certificate and inspection certificate.
★Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.
★Electromotion adjustable angle, it can rotated adjust the paper preheat area in the range of 360°.

technical parameters：

1、Effective width：1800mm
2、preheat roller：￠900mm angle shaft：￠110mm
3、range of angle adjustment：360°rotation
4、diameter of angle shaft：￠110mm×2
5、steam temperature：150-180℃
6、pressure：0.8-1.3Mpa
7、equipment size：Lmx3.3*Wmx1.1*Hmx3.9
8、single weight：MAX6000Kg
9、working power supply：380V     50Hz
10、motor power：250W short（S2）working system

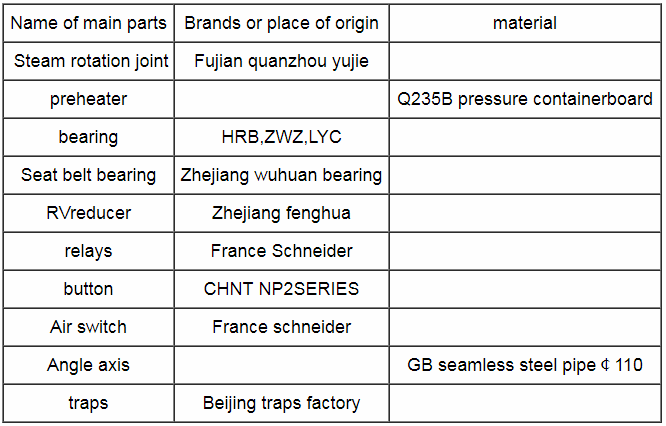

Mainly purchased parts, raw materials and origin：
