Double Facer Corrugation Machine SM-F

Get Latest Price

Payment Type:	T/T
Incoterm:	FOB,CIF
Min. Order:	1 Others
Transportation:	Ocean
Port:	Qingdao Port,Tianjin Port

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Structural features：

Heating plate surface by grinding treatment，hot plate width600mm.
Preheat board is made of container board, in accordance with the national standard of pressure container, enclosed the pressure container certificate and inspection certificate.
Hot plate with intensive gravitational roll structure.Pressure roller with lifting hydraulic structure
heat pipe of the heating board three section of control temperature, temperature display.
up cotton belt with double cylinder S cotton belt tensioning device.
bottom cotton belt with s-shaped correction manually tensioning mechanism, structure simple and practical，under with manual fine-tuning。
Drive roller coated with attached wear-resistant rubber ，showed a herringbone structure，With a high, ensure smooth cardboard output。
Main drive motor for frequency conversion motor，low-speed torque，wide speed range ,reliable, and easy maintenance.
hot plate internal for partition isolation structure,s-shaped flow of steam，Steam, water separation function significantly improves the utilization of steam

Technical parameters：

1、temperature requirement：160—200℃　steam pressure：0.8-1.3Mpa

2、air source pressure：0.6—0.9Mpa

3、Cooling stereotypes length：4m　Heating plate quantity：14 pieces

4、Hydraulic system pressure:6—8Mpa max working width:200m/min

Roller diameter parameters：

1、upper drive rubber roller diameter：￠440mm　lower drive rubber roller diameter：　￠440mm　Wear rubber Outsourcing

2、Former follower with roller diameter：￠270mm　After setting belt driven roller　diameter：￠186mm

3、pressure belt roller diameter：￠70mm　Shaping roller diameter：￠86mm

4、The belt tension roller diameter：￠130mm　The roll diameter with detuning：￠124mm

5、Under the belt tension roller diameter：￠130mm　Entrusted with the roll diameter under the belt：￠130mm

Note: All the roller surface after grinding are hard chrome plated

Powered motor parameters：

1、Main drive motor power：45KW　380V　50Hz　Continuous (S1) working standard

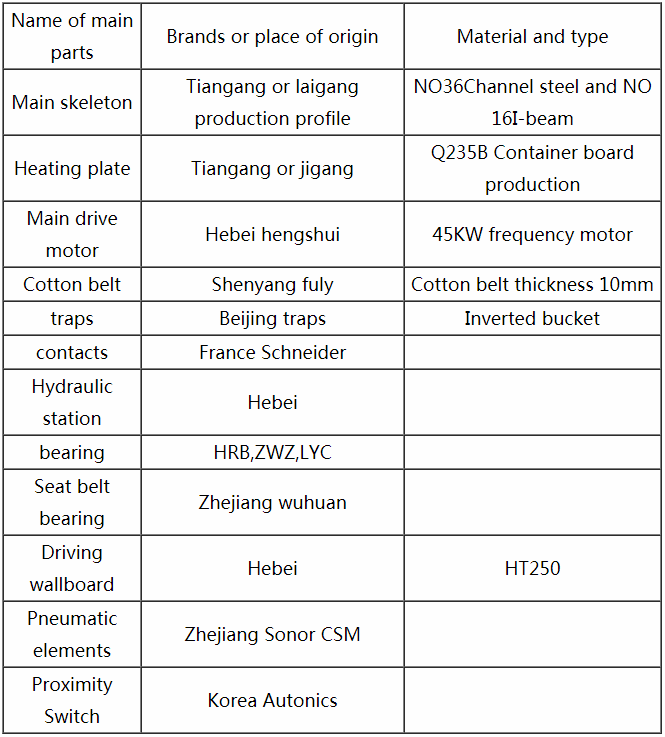

Mainly purchased parts, raw materials and origin：

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
