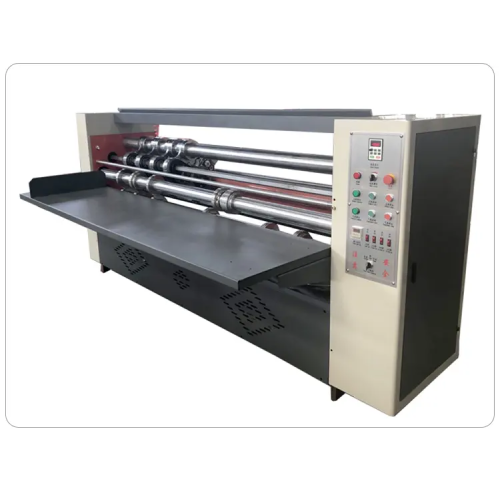

Carton Thin Blade Knife Slitting & Creasing Machine

Carton Thin Blade Knife Slitting & Creasing Machine

Get Latest Price

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

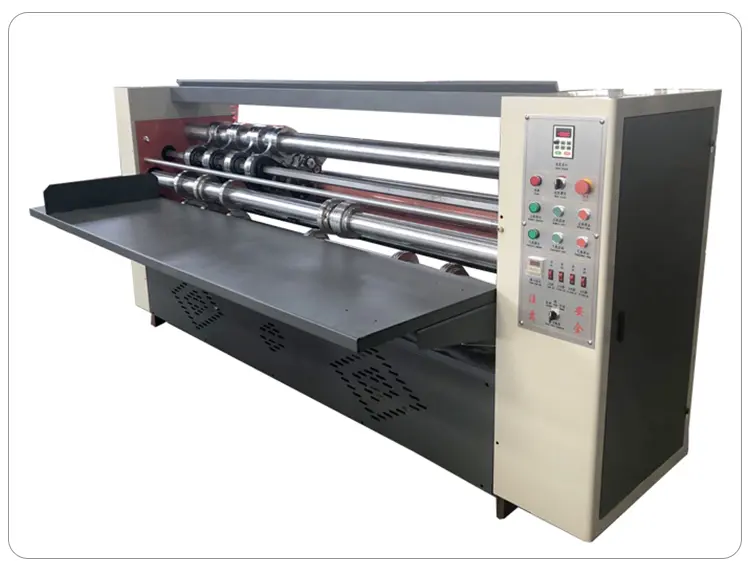

BFY Thin blade slitter scorer machine

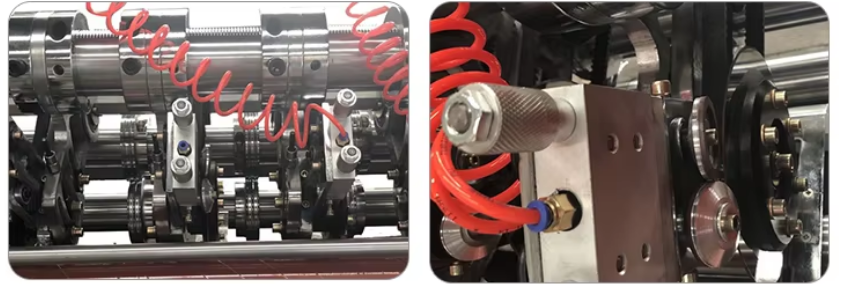

Function and Features:

1. This type machine is the latest thin blade cutting and grooving machine. It can reduce cost one-fourth than general type, it’s economic and practical.

2. Used thin blade cutting paperboard to avoid burr and be flattened. Finished cardboard is flat and smooth and free from burrs and press flatten, good straightness, improve quality and appearance of cardboard.

3. This machine uses chain, reduce noise and improve transmission efficiency and prolong the service life. Cutter axis can be adjust up and down, therefore, prolong blade service life.

4. The structure of creaser in front and feeding axis in back to ensure cutting and creasing is straight. And adopt eccentric adjustment for feeding and creasing axis so meet different size cardboard.

5. Automatic sharpening blades, cutting and grinding at the same time. Keep the sharpness of blade and increase working efficiency.

6. Scorer with the Martin technique of French, no tear for high, medium and low-grade cardboard.

Option:Electric regulate the space of blades, pneumatic lock blade die.

Type	BFY-2000	BFY2200	BFY-2500
Cutting blade	3 sets	4 sets	5 sets
Creasing line	4 sets	6 sets	8 sets
Min cutting width	120mm	120mm	120mm
Min creasing width	50mm	50mm	50mm
Out diameter of blade	260mm	260mm	260mm
Blade thickness	1mm	1mm	1mm
Motor power	3kw	3kw	4kw
*Dimension(LWH mm)*	*263017901130*	*283017901130*	*305017901130*
Suit sheet thickness	3-7layers
Blade material	Quality alloy blade

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
