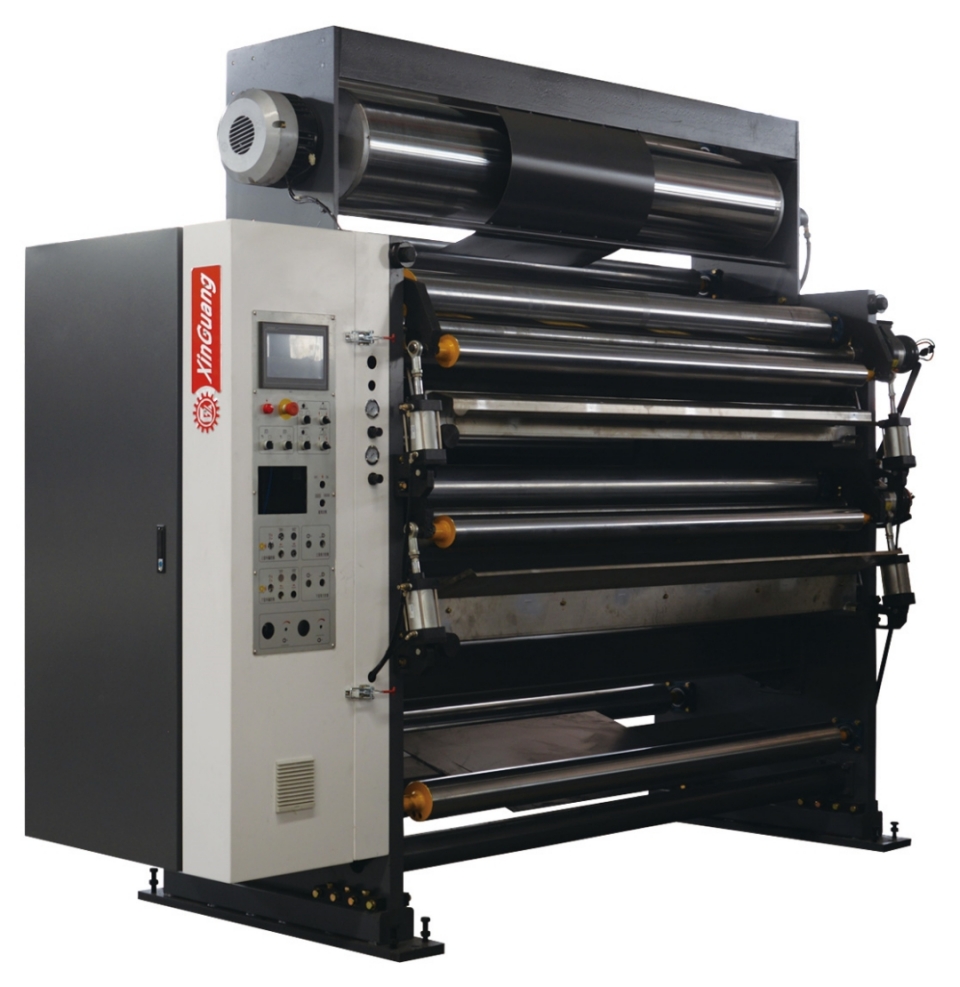

GM-35 two-layer gluing machine

Technical parameters:

Working breadth:2500mm
Design speed:350m/min
Economic speed:180--280m/min
Adjustment range of adhesive amount:0.08-0.6mm
Glue roller mesh number:40 lines
Preheating cylinder temperature range:150—200℃
Working power supply:380V 50Hz 15KW
Air source system:0.4—0.9Mpa
Compression method:Pneumatic

Main performance characteristics:

The second layer gluing machine is used to transport corrugated paper from the overpass, preheat and heat it up, apply glue again, and then enter the double-sided machine for gelatinization and bonding, producing three layers and five layers of cardboard.
Cast iron frame structure, stable performance, upper and middle preheater with a diameter of 400mm, increasing paper temperature for easy glue gelatinization, double pressure roller design for uniform glue coating, stainless steel glue groove, automatic circulation glue supply.
After the surface of the glue roller is quenched and tempered, the inner hole is processed, and the dynamic balance surface is finely ground and engraved with concave mesh patterns. Large diameter uniform glue roller dynamic balance treatment, copper plate scraping, uniform and consistent gluing, saving glue and steam, and smooth cardboard
The transmission of the glue coating unit is directly connected by a servo motor through a reducer structure, and is controlled by a frequency converter to ensure that the linear speed of the glue roller is synchronized with the double-sided machine and can operate independently. Using angle sensors, PLC, and touch screen human-machine interface display. Automatically control the amount of glue according to different paper types and vehicle speeds, and adjust the gap between the pressure rollers according to different corrugations without accumulating errors.

Main component parameters:

Component Name/Process	Specifications	Surface treatment
Gluing roller	￠320mm	Circular grinding embossed chrome plating
Uniform rubber roller	￠195mm	Round grinding chrome plating
Pressure roller	￠155mm	Round grinding chrome plating
Paper axis	￠128mm	Round grinding chrome plating
Preheating cylinder (2 off)	￠400mm	Round grinding chrome plating

Main power parameters:

Active servo motor for glue roller:Power 5.5KW * 2, voltage 380V, frequency 50HZ

Glue adjustment servo reducer:Power 200W, voltage 380V, frequency 50HZ

Pressure roller gap adjustment servo motor:Power 200W, voltage 380V, frequency 50HZ

Main component brands and origin:

Number	Main component name	Brand or place of origin	Remarks
1	Glue roller and adhesive roller	Tiangang Production	45 steel quenching and tempering
2	Preheating roller	Tiangang or Jigang	Q235B container plate
3	Bearing	Japan NSK
4	Seat bearing	Fujian Fushan	FSB
5	Pneumatic components	Taiwan Yadeke AirTac
6	Low voltage electrical apparatus	Siemens SIEMENS, Germany	Contactor, relay, button
7	Glue mixing reducer	Taiwan City State or Wanxin
8	Main reducer	Taiwan City State or Wanxin
9	touch screen	Taiwan Vinylon or Kunlun Tongtai	10.4inch
10	PLC and frequency converter, server	Siemens SIEMENS, Germany
11	Synchronous belt	OPTIBELT, Germany
12	Drain valve	Beijing Drain Valve Factory	Floating ball type
