SM-F Double Sided Machine

Get Latest Price

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

General technical parameters:

1. Working width: 1400-220mm

2. Design speed: 150m/min

3. Cooling and shaping length: 4 meters, number of heating plates: 12-16 pieces

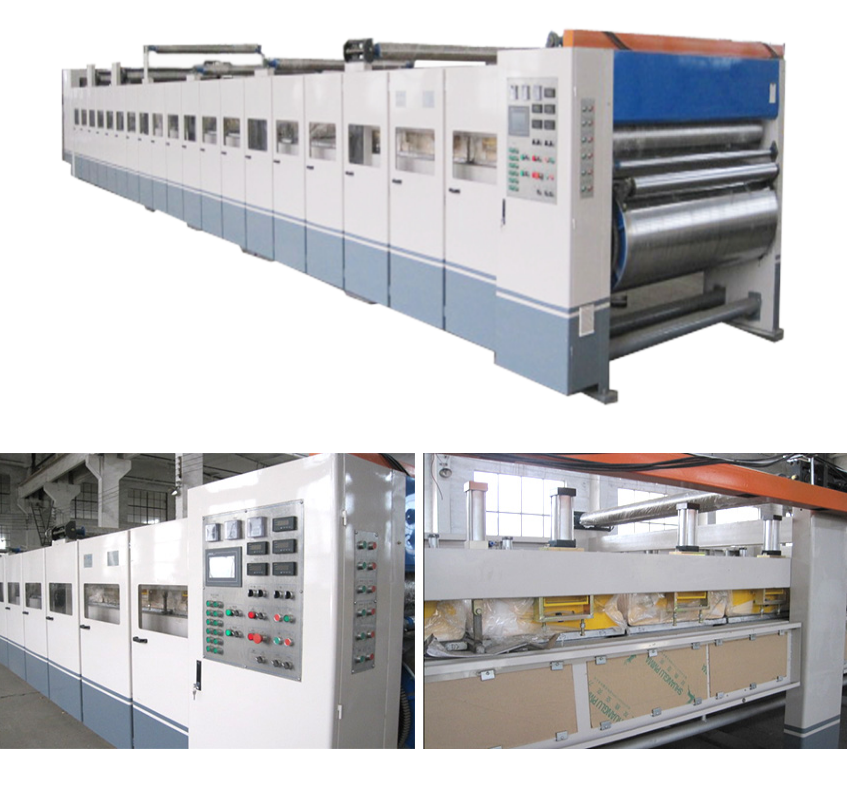

Structural features:

The surface of the heating plate has been ground and chrome plated, with a width of 600mm.
The heating plate is made of container plates and comes with pressure vessel certificates and inspection certificates. The internal structure of the hot plate is a partition isolation structure, which makes the steam flow in an S-shaped direction. The separation function of steam and water is obvious, which improves the steam utilization rate.
The upper conveyor belt can be adjusted automatically from left to right, or manually from both sides. The upper conveyor belt tensioning system has one set of pneumatic adjustment.
The heat transfer piping of the heating plate is divided into multiple sections to control the temperature, and is equipped with temperature display.
The lower belt adopts a pneumatic tensioning mechanism, which is simple and practical in structure. The lower conveyor belt can be adjusted automatically from left to right or manually from both sides
The driving roller surface is equipped with wear-resistant rubber and has a medium height to ensure a smooth output of the cardboard.
The driving gear is made of cast steel ZG-500 material, and the gear is lubricated with oil immersion.
The electrical components adopt internationally renowned brands, ensuring stable operation and reliable operation.
The main driving motor is a variable frequency energy-saving motor, with large low-speed torque, wide speed range, reliable use, and simple maintenance.
The main skeleton adopts high-strength national standard profiles, with a sturdy structure and beautiful appearance, suitable for working at high speeds.

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
