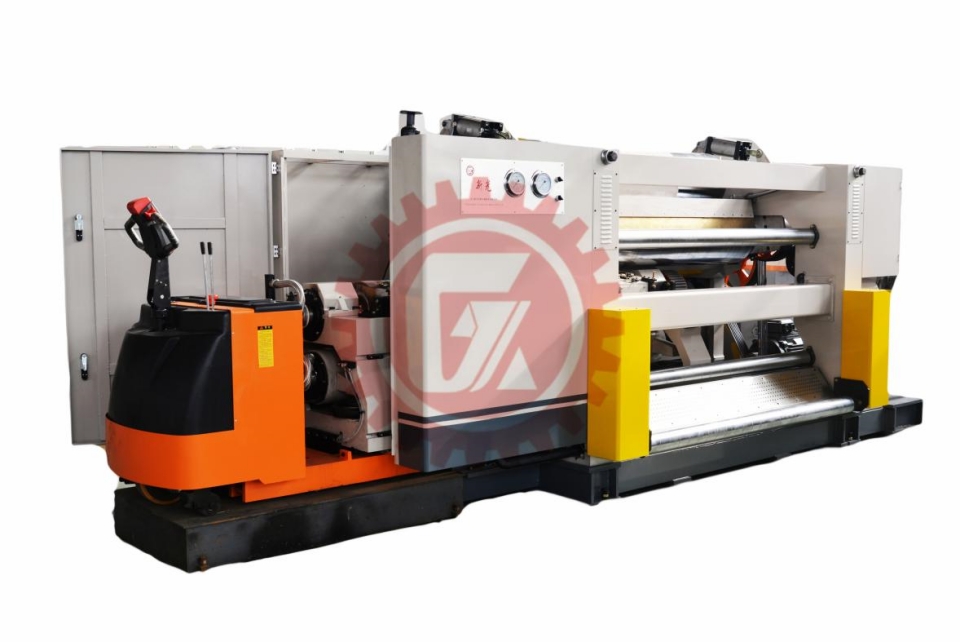

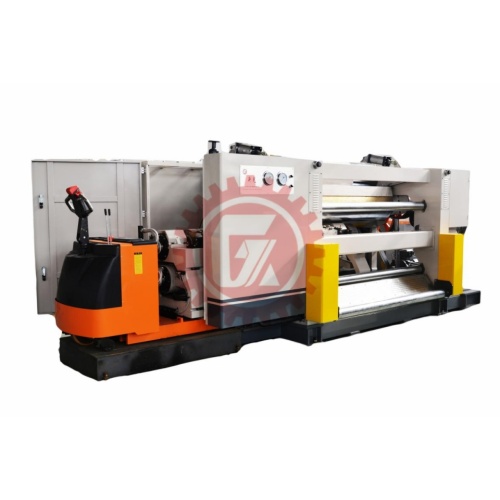

SF-405E Drawer Single-Sided Corrugated Machine

SF-405E Drawer Single-Sided Corrugated Machine

Get Latest Price

Min. Order:

1 Others

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

General technical parameters:

1. Corrugated roller: diameter of 405mm

2. Working width: 1400-2500mm

3. Operation direction: left or right (determined according to the customer's factory)

4. Design speed: 250m/min

5. Corrugated type (UV type or UVV type): A/C/B/E

Structural characteristics:

Adopting a negative pressure design with low heat loss, the core paper can be uniformly compressed and attached to the surface of the corrugated roller, making the corrugated better formed. Because the pressure is uniform, the top of the corrugated paper can be better and evenly coated with glue, making the single-sided corrugated paper better bonded.
Quick roll change, 10 minutes. When replacing the corrugated rollers, use a trolley to tow the entire set of corrugated rollers into the machine and fix it on the machine base. Simply press the button switch to quickly complete the replacement of the corrugated rollers.
The corrugated roller is made of 48CrMo high-quality alloy steel, which has undergone heat treatment, and the surface has been ground and treated with tungsten carbide.
The corrugated roller, pressure roller, etc. are equipped with a highly stable airbag control system, which also has a pneumatic control buffering effect.
The glue amount control adopts electric adjustment, and the glue separation device is electric. The glue coating system can operate independently when the host is stopped to prevent glue from drying up.
The mobile adhesive system is not only convenient for cleaning, but also more conducive to maintenance and repair work.
The simple operation control system, touch screen operation interface, and color graphics display operation status, function selection, fault indication, troubleshooting, and parameter setting all demonstrate that this machine is fully functional, easy to operate, and user-friendly.
Built in pre regulator with spray system to adjust the temperature and moisture of core paper.
The main and auxiliary corrugated rollers, as well as the pressure roller bearings, are all equipped with high-temperature lubricating grease to ensure bearing life and smooth operation.
