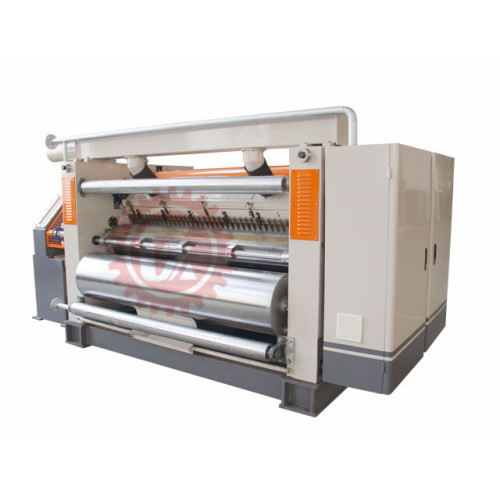

SF-320C Adsorption Single-Sided Machine

Get Latest Price

Min. Order:

1 Others

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

General technical parameters:

1. Corrugated roller: phi 320mm

2. Working width: 1200-2000mm

3. Operation direction: left or right (determined according to the customer's factory)

4. Design speed: 150m/min

5. Corrugated type (UV type or UVV type): A \ C \ B \ E

Structural characteristics:

Adopting a hood suction structure, equipped with high-pressure and powerful fans. The gas source and electrical control are centralized in the same operating cabinet, with the operating side fully enclosed and covered.
High quality resin sand castings, using an independent gearbox and universal joint transmission structure.
A lifting trolley has been installed on the conveyor bridge, which can be used to remove the tile roller assembly and pressure roller when needed, making it convenient and efficient.
The glue roller unit adopts an overall external moving structure, which can be moved out of the machine as a whole during maintenance, improving work efficiency.
Equipped with spray humidity control device, the corrugated shape can maintain good deformation stability and avoid dry cracking.
Adopting an automatic circulating glue supply system and a dual pneumatic cylinder pneumatic gluing device, it has a good buffering effect.
The gluing section adopts an integral sliding plate structure, and the surface of the gluing roller is finely ground and engraved with 25 lines of concave mesh patterns, which are then plated with hard chromium.
The corrugated roller material is 48CrMo alloy steel, which has undergone quenching and tempering, rough turning, precision boring of inner holes, shaft head drying and installation, welding, tempering and stress relief, precision turning, rough grinding, medium frequency quenching, CNC grinding, and tungsten carbide treatment.
The active power is driven by a variable frequency motor, which is energy-saving, efficient, and has a low failure rate.
Electric adjustment of glue coating width to adapt to changes in the width of the used base paper.
