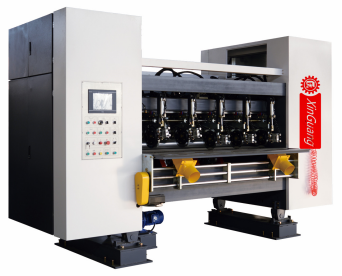

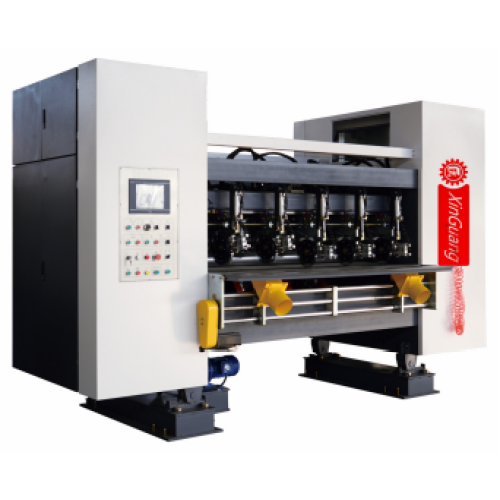

NCBD Thin Blade Slitter Scorer

Get Latest Price

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Technical parameters：

Working width :1800mm

Design speed :250m/min

Economic speed :200-230m/min

Mechanical configuration :6 Knife 10 lines

Min cutting width :140mm

Minimum indentation distance :0mm

Cutter wheel positioning accuracy :±0.5mm

Horizontal movement of the whole machine :±100mm

Structural feature：

The synchronous servo motor controls the row of knives and wires. Automatic reset. Precise size. Change order time is 1- 3 seconds. The two machines can be used to change orders immediately without slowing down.
PLC control system, using CANopen bus system, with order management function, equipped with a synchronous signal input interface with dryer speed.
HMI with 10.4-inch color touch screen, storage 999 orders, change orders automatically or manually for a single, fault alarm.
Three kinds of pressure line forms：Convex against the concave（three layers line）、Convex against the concave（five layers line）、Convex against Flat，Three kinds of electric pressure line forms can be converted.Crimping round shades by computer control，linear, and easy to bend.
Using thin tungsten alloy steel knife，sharp blade，long life of more than 8 million meters.knife sharpener for computer control，automatic or manual knife sharpener，Cutting edge sharpening can be divided,improve productivity Efficiency.
Imported synchronous belt transmission is adopted, and the thin blade holder and the crimping seat are supported by linear bearings, and the positioning size is accurate without accumulating errors.
The cutting and crimping are driven by independent frequency conversion motors. The suction port is automatically positioned with the change order.
With gas storage tank and low pressure protection function.

Main dynamic parameters：

Name	Power	Voltage	Frequency
Row of single-pole servo motors	0.45KW	380V	50HZ
Slitting inverter motor	7.5KW	380V	50HZ
Pressure line frequency conversion motor	7.5KW	380V	50HZ
Suction outlet frequency conversion motor	0.55KW	380v	50HZ

Main parts brand and origin：

Serial number	Name of main parts	Brands or place of origin	Remarks
01	Frame	ShanDong JiNan	Q345
02	Rail beam	TianJin	Q345
03	PLC Programming controller	Schneider	CANopen Bus system
04	HMI	Kinco	10.4 inch
05	Row knife servo control	Kinco	500w
06	Row line servo control	Kinco	500w
07	Line change control	Kinco	500w
08	Suction control	Kinco	500w
09	Proximity switch, photoelectric switch	Japan omron
10	Relay	Schneider
11	Main frequency conversion motor	HeBei	5.5KW×2
12	Horizontal motor	Shandong Jinzhan Reducer
13	Suction exhaust motor	ZheJiang	0.55kw
14	Solenoid valve, cylinder	AirTac
15	Bearing	HRB or C&U
16	Bearing with seat	ZheJiang Wuhuan
17	Tungsten alloy blade	Sichuan Boyan	￠260mm
18	Linear Guides	TaiWan	ShangYin
