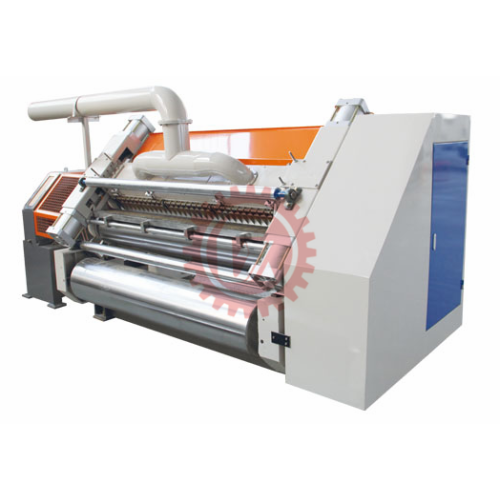

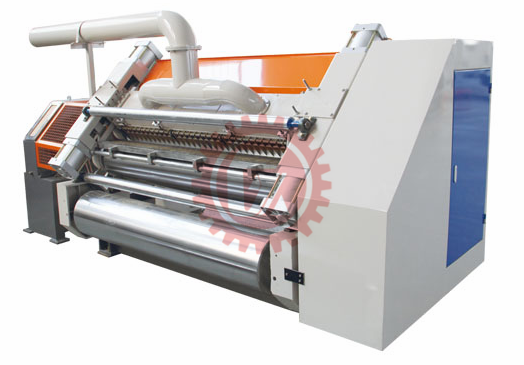

SF-280S Adsorption Single-Sided Machine

Get Latest Price

Min. Order:

1 Others

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

General technical parameters:

1. Corrugated roller: phi 280mm

2. Working width: 1200-2000mm

3. Operation direction: left or right (determined according to the customer's factory)

4. Design speed: 100m/min

5. Corrugated type (UV type or UVV type): A \ C \ B \ E

Structural characteristics:

Adopting a hood suction structure, equipped with high-pressure and powerful fans. The suction and noise reduction device, air source and electrical control are centralized in the same operating cabinet, not less than 1.5 meters away from the main unit, and the operating side is fully enclosed and covered.
Cast iron structure for machine base and wall panels. Universal joint transmission.
The corrugated roller material is made of 48CrMo alloy steel, which has been quenched and tempered, medium frequency quenched, and surface polished. The surface hardness is HRC60 degrees or above.
Surface grinding and chrome plating treatment of pressure rollers; The cylinder controls the up and down movement, and the material is medium carbon steel, quenched and tempered (with buffer device).
Pneumatic control for dispensing and removing glue, the surface of the glue roller is polished and engraved with 25 lines of concave mesh pattern, processed and plated with hard chromium, and the surface of the glue scraping roller is polished and plated with hard chromium.

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
