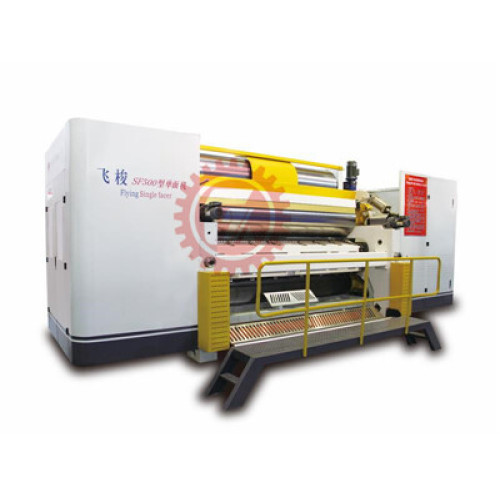

SF-500 Single-Sided Corrugated Machine

Get Latest Price

Min. Order:

1 Others

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

General technical parameters:

1. Corrugated roller: ＜ 500mm

2. Working width: 1400-2500mm

3. Operation direction: left or right (determined according to the customer's factory)

4. Design speed: 350m/min

5. Corrugated type (UV type or UVV type): A/C/B/E
Structural features:

Adopting a negative pressure design, the large diameter corrugated roller and pressure roller allow the paper to be fully and uniformly compressed at lower temperatures, improving initial viscosity and ensuring good adhesion of different weight paperboards at high speeds.
The electric trolley moves the bearing roller part, operates the button, and the locking of the bearing roller part is released. The roller needs to be changed within 10 minutes.
The corrugated roller adopts a peripheral heating system to reduce preheating time, eliminate condensation water accumulation, reduce tile roller deformation, restart the machine, and minimize cardboard loss. (Optional)
The corrugated roller and pressure roller are loaded using pneumatic control, which has a buffering effect, reduces machine vibration, and improves the quality of the cardboard.
The gap between the pressure roller and the corrugated roller is adjusted using precision ball screw, detected by an electronic ruler, and displayed with numerical values; The gap automatically adjusts with the vehicle speed and weight.
The driving part is driven by a toothed belt, with smooth transmission, low noise, and maintenance free.
The glue coating system can operate independently when the host is stopped; Install a cold water circulation system on top of the glue roller to prevent the glue from drying up on the surface of the glue roller.
The adhesive amount adjustment adopts a double eccentric structure, which is more precise and convenient to adjust; The amount of glue is automatically adjusted with the speed and weight of the cardboard.
The mobile adhesive system is not only convenient for cleaning, but also more conducive to maintenance and repair.
Humanized control system, touch screen operation interface; Color graphics display operation status, function selection, fault indication, troubleshooting, and parameter settings; Easy to operate, user-friendly, and intelligent.
The built-in core paper presetting spray device can adjust the core paper temperature and moisture.
