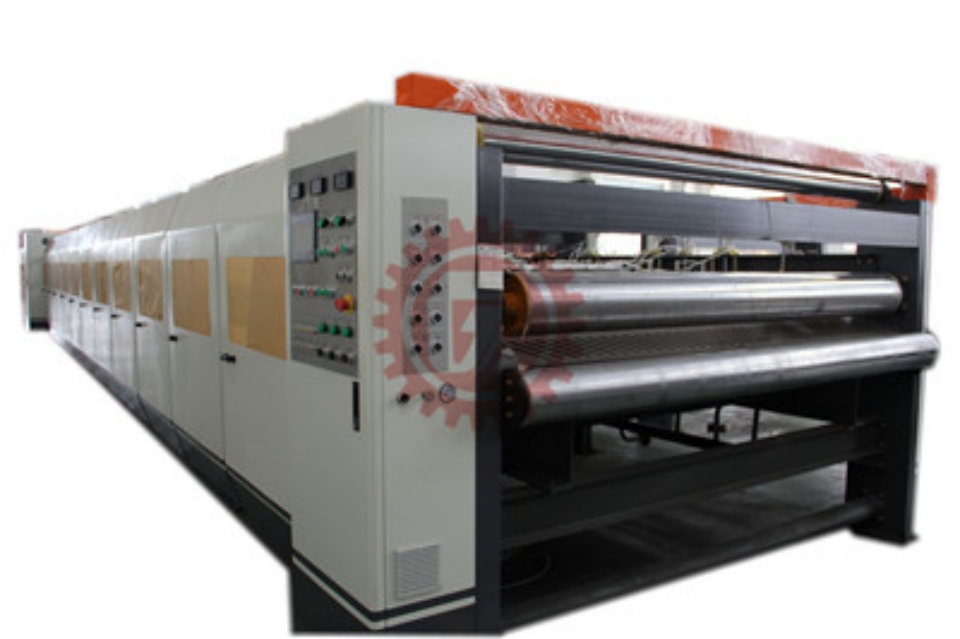

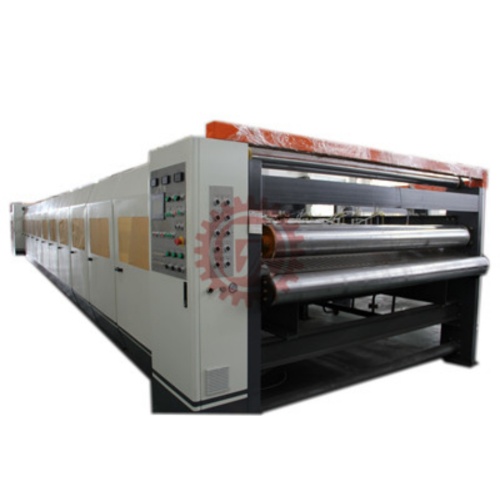

SM-E Double Sided Machine

Get Latest Price

Min. Order:

1 Others

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

General technical parameters:

1. Working width: 1400-2500mm

2. Design speed: 250m/min

3. Cooling and shaping length: 5 meters, number of heating plates: 16-20 pieces

Structural features:

The surface of the heating plate has been ground and the width of the heating plate is 600mm.
The heating plate is made of container plate, which meets the national Class I pressure vessel standard and comes with a pressure vessel certificate and inspection certificate.
The hot plate adopts a full process hot pressing plate structure. The pressure plate adopts a pneumatic spring structure, with pneumatic lifting.
Pneumatic automatic correction of upper conveyor belt.
The heat transfer piping of the heating plate is divided into three sections to control temperature, and is equipped with temperature display.
The upper cotton belt adopts a double cylinder S-shaped cotton belt tensioning device.
The lower belt adopts pneumatic automatic correction.
The driving roller surface is equipped with wear-resistant rubber and has a medium height to ensure a smooth output of the cardboard.
The electrical components adopt internationally renowned brands, with stable operation and reliable operation.
The main driving motor is a variable frequency speed regulation motor, which has a large low-speed torque, a wide speed regulation range, reliable use, and simple maintenance.

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
