Product Description

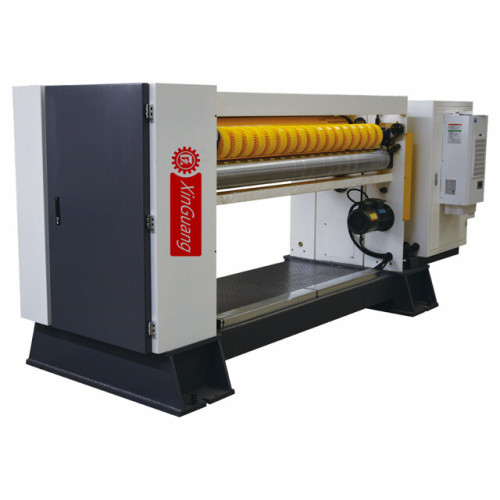

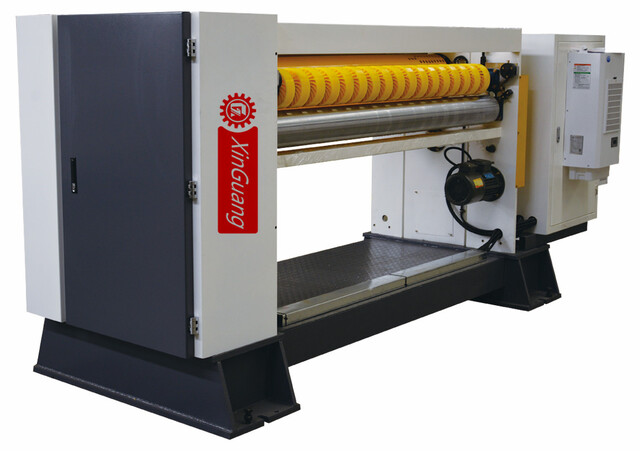

NC-150 Computer Spiral Knife Cross Cutting Machine

Technical parameters:

Work breadth:1800mm
Design speed:150m/min
Economic speed:80-150m/min
Minimum paper cutting length:500mm
Maximum paper cutting length:9999mm
Paper cutting accuracy:The uniform speed is ± 1mm,
Working power supply:380V 50Hz 22KW

Main performance characteristics:

Can store 200 sets of orders, quickly and accurately change paper cutting specifications, do not stop changing orders, and can achieve computer networking for convenient production management.
The cutter shaft transmission gear adopts precision forged steel material for high-frequency quenching, achieving no backlash transmission, and adopts advanced keyless connection method, with high transmission accuracy.
The blade of the cross cutting machine adopts a spiral blade structure with inlaid edges and a serrated blade shape. Scissor cutting, with low shear force and long blade life.
Both the front and rear paper feeding wheels adopt the sun wheel paper pressing method, which ensures smooth conveying, uniform pressure, and is not easy to damage the board or cause blockage.
This model adopts energy storage braking (non energy consumption braking), with low energy consumption during the production process. The average electricity consumption is one-third of that of ordinary NC cutting machines, saving more than 70% of electricity and achieving the goal of saving money.
Precision adjustable gapless gear ensures precise engagement of the cutting edge and balanced operation.
Oil bed lubrication is used to distribute oil supply, lubrication, and cooling at each gear position.
Knife roller: Made of high-quality precision forged steel material, it has been balanced and has good stability.

Main component parameters:

Component Name Process	Specifications	Surface treatment	Special requirements
Horizontal cutting of upper and lower tool axes	￠216mm	Quenching and tempering	Dynamic balance
Front lower conveying roller	￠156mm	Round grinding, chrome plating, polishing	Dynamic balance
Rear lower conveying roller	￠156mm	Round grinding, chrome plating, polishing	Dynamic balance
Paper traction shaft	￠160mm	Silicone coated	Dynamic balance
Output Sun Wheel	￠160mm	polyurethane	Intensive
