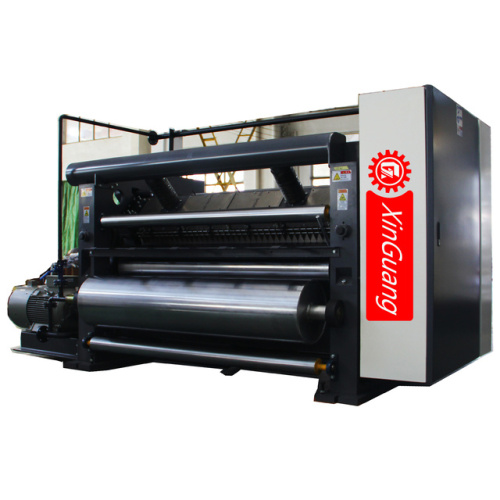

SF-290S Adsorption Single-Sided Machine

Get Latest Price

Min. Order:

1 Others

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

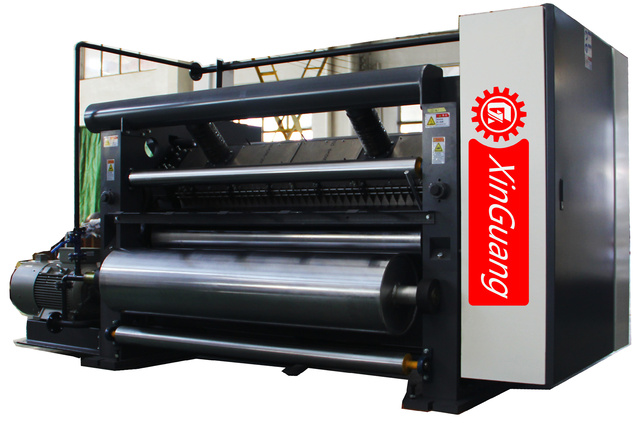

SF-290S adsorption single-sided machine

Technical parameters:

Working breadth ：1400mm--2000mm
Design speed：120m/min
Economic speed：80-120m/min
Paper feed range
Maximum steam temperature：200℃
Maximum steam pressure：1.2Mpa
Working power supply：380V 50Hz 25KW

Main performance characteristics:

Adopting a cover suction negative pressure structure, the high-pressure fan attaches the corrugated paper to the corrugated roller. Easy to apply adhesive, with a simple structure and easy maintenance.
The rack adopts a high-grade cast iron structure, which is high-strength, has good shock absorption, and has undergone tempering treatment without deformation.
The material of the corrugated roller is 50CrMoA alloy steel, which has been quenched and tempered, medium frequency quenched, and surface polished. The diameter of the main corrugated roller is 292mm, and the surface is treated with tungsten carbide tile roller or chrome plating. The tile roller and pressure roller bearings adopt high-temperature resistant double row roller bearings. High temperature grease lubrication. Pressure roller. The corrugated roller adopts airbag pressurization, which has good buffering effect, long service life, and maintenance free.
The glue unit can be moved out horizontally as a whole, with easy disassembly and maintenance. The cylinder controls the glue feeding and dispensing action sensitively, and the copper plate scrapes the glue clean. The electric rubber blocking plate controls the width of the glue application, using an angle sensor, PLC, and touch screen. Automatically control the amount of glue according to different paper materials and vehicle speeds, without accumulating errors.
The host is equipped with a large diameter preheater, which concentrates heat and has a large preheating area. No additional preheating device is required, and the lower preheating roller is ¥ 600mm. Upper preheating roller ¥ 400mm. Reasonable matching, electric adjustment of preheating package corner area. The core paper is equipped with a humidifier.
Adopting gearbox universal shaft transmission, the gears undergo high-frequency quenching and hardening treatment. Oil bed lubrication, lifelong lifespan. Variable frequency motor speed regulation, energy-saving and efficient.

Main component parameters:

Component Name Workmanship	Specifications	Material Science	Surface treatment
Corrugated roller	Main roller￠292mm	50CrMAo Alloy steel	Tungsten carbide or chrome plating treatment
Pressure roller	￠320mm	45＃	Quenching, round grinding, chrome plating, polishing
Gluing roller	￠215mm	45＃	Circular grinding and indentation with mesh pattern chrome plating
Uniform rubber roller	￠128 mm	45＃	Round grinding, chrome plating, polishing
Core Paper Preheater	￠400mm	Q235B	Round grinding, chrome plating, polishing
Noodle preheater	￠600mm	Q235B	Round grinding, chrome plating, polishing
Paper guide roller	￠110 mm	45＃	Round grinding, chrome plating, polishing

Main power parameters:
Main drive variable frequency motor:Power 11KW, voltage 380V, frequency 50HZ
High pressure suction motor:Power 11KW, voltage 380V, frequency 50HZ

Main component brands and origin:

Number	Main component name	Brand	Remarks
01	Rrame	Self-produced	HT250
02	Rotating joint and metal hose	Fujian Quanzhou Yujie
03	Main drive motor	Hengshui, Hebei	11KWVariable frequency motor
04	Bearing	Humanistic C&U
05	Seat bearing	Nan'an, FujianFGJ
06	High pressure fan	Shanghai Yingfa	11KW
07	Pneumatic components	Taiwan Yadeke AirTac
08	Low voltage electrical apparatus	Germany SIEMENS	Contactor, relay, button
09	PLC Frequency converter	Taiwan Delta
10	Touch screen	Taiwan Vinylon or Kunlun Tongtai	7.5 inches
11	Circulating glue pump	Hebei Botou Gear Pump Factory	Belt drive

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
