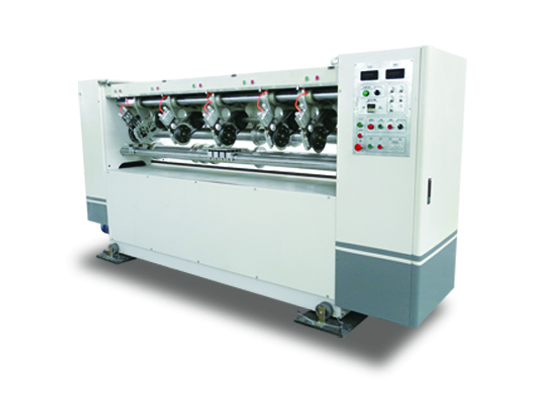

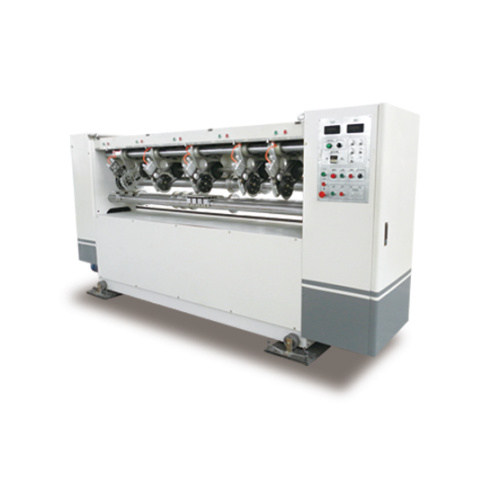

Thin Knife Paper Separator

Get Latest Price

Payment Type:	T/T
Incoterm:	FOB,CIF
Min. Order:	1 Others
Transportation:	Ocean
Port:	Qingdao Port,Tianjin Port

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Structural features：

Overcome the conventional type of pole, cutting pressure lines appear when collapsed cardboard cut phenomenon, cutting board smooth, quality has improved significantly.
the whole machine can remove left and right,cycloid reducer to adjust.
Cutter and easy to adjust the pressure line, the error ± 0.5mm, automatic sharpening device, you can achieve timing Brothers, with intermittent Brothers and other features.
the machine adopt five knives eight lines,the blade is made of tungsten alloy steel, the using life is not less than 3 million running meters.

Technical parameters：

1、effective width：1600mm

2、The maximum mechanical speed：100m/min

3、Mechanical configuration： 5knives 8lines

4、The minimum width of the cutter：135mm

5、The maximum width of the cutter：1850mm

Powered motor parameters：

1、Line cutter line motor:0.4KW

2、Knife wheel drive motor:5.5KW

Mainly purchased parts, raw materials and origin：

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
