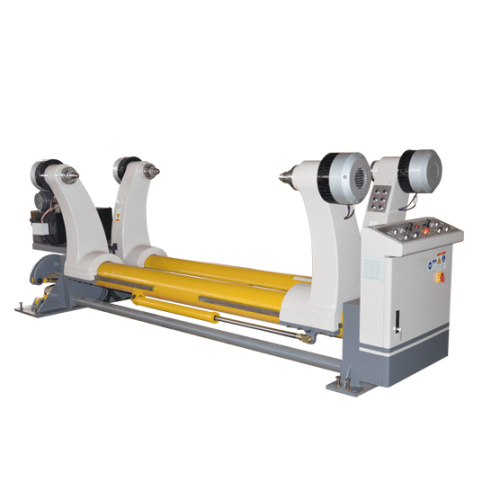

Paper Holder Machine ZJ-V6B

Get Latest Price

Payment Type:	T/T
Incoterm:	FOB,CIF
Min. Order:	1 Others
Transportation:	Ocean
Port:	Qingdao Port,Tianjin Port

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

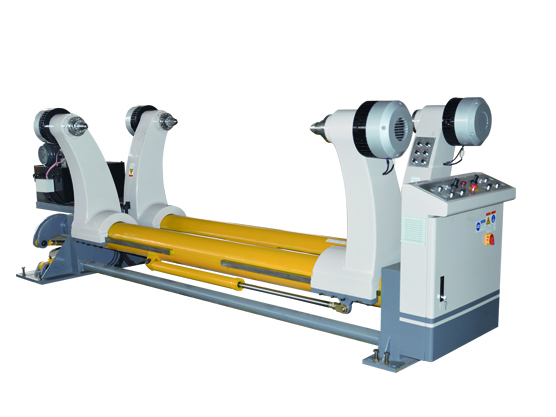

The high-speed hydraulic shaftless rolling mill frame for cardboard boxes is a high-speed hydraulic shaftless drum frame machine designed specifically for the production of corrugated cardboard boxes. This machine adopts advanced hydraulic technology, which can achieve fast and stable drum operation, effectively improving production efficiency.

The drum rack machine adopts a shaft free design, making drum replacement more convenient and efficient, while also avoiding issues of shaft wear and drum displacement. The machine is also equipped with a high-speed motor, which can achieve fast drum operation, greatly reducing the production cycle.

In addition, the drum frame machine also has an automatic tension control system, which can achieve precise control of the drum tension and ensure the smooth operation of the drum. At the same time, the machine also has an automatic switching function, which can automatically switch to the backup drum to avoid production interruption.

This is an efficient, stable, and easy to operate drum rack machine, which can be widely used in the production of corrugated cardboard boxes.

Structural features：

Symmetrical structure can also install two bundles of paper at the same time，Paper can be used for non-stop for a job；Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car；paper guide the use of channel 14 and the guide post weld，paper car adopt 10mmwelded stell，the length of track is 6000mm.
manual dics brake，add screw following.
electric elements centralized control the electric elements，toothed chuck.

technical parameters：

1、the range of paper jams：maximum：1800mm minimum：600mm

2、the diameter of paper jams：maximum：￠1600mm minimum：￠400mm

3、Unilateral maximum load：maximum2000Kg

4、Powered motor parameters：

①Paper jams motor550W×4set 380V 50HZ short（S2）working standard

②lift motor 1.5KW 380V 50HZ short（S2）working standard

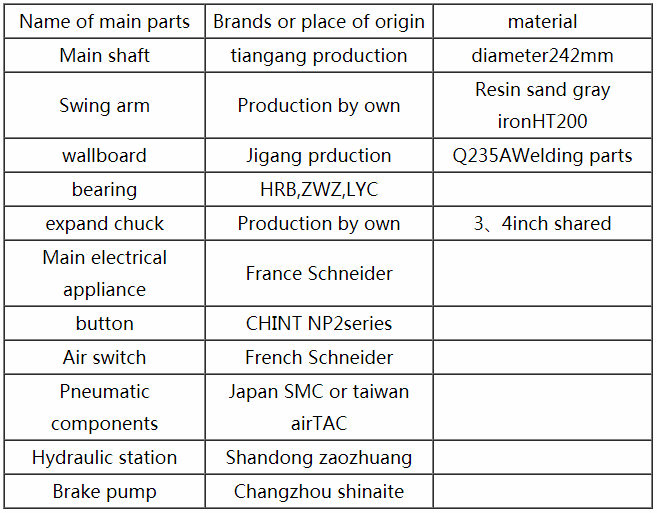

Mainly purchased parts, raw materials and origin：
