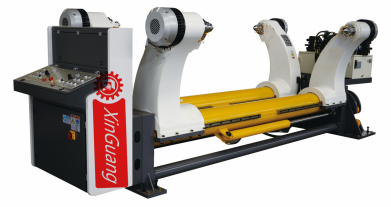

ZJ-V5B Hydraulic Shaftless Mill Roll Stand

Technical parameters：

Working wide:2200mm
Paper diameter:MAX: 1500mm   MIN:300mm
Paper width:MAX: 2250mm  MIN:800mm
Weight capacity:3 T
Paper head size:Teeth 3 inches 4 inches
brake:Spur gear type 4 points pneumatic
Working air pressure:0.4---0.8Mpa

Main performance characteristics：

• Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others，the lifting of the paper adopts hydraulic drive.
• The brake uses a multi-point brake system, a gear disc structure, equipped with a cooling fan, Yadeke pneumatic components, stable tension, and long life.
• The large-diameter spindle design, the swing arm slides smoothly, and the steel guide rails are treated with high frequency treatment, which is super wear-resistant.
• The hydraulic cylinder is installed on a twisted shaft, which does not bear radial force and is easy to maintain.

Hydraulic system parameters：

Working pressure:16---18Mpa

Hydraulic cylinder working range:￠100×420mm

Hydraulic cylinder working range:￠63×800mm

Hydraulic station motor power:3.7KW --380V -- 50Hz

Solenoid valve working voltage:220V--50 Hz
