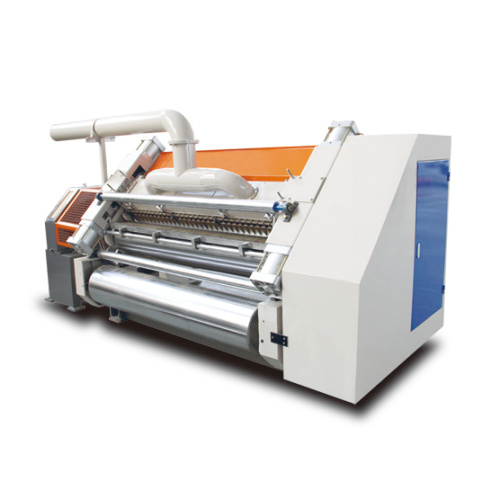

Single Facer Machine SF-280S

Get Latest Price

Payment Type:	T/T
Incoterm:	FOB,CIF
Min. Order:	1 Set/Sets
Transportation:	Ocean
Port:	Qingdao Port,Tianjin Port

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Set/Sets

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

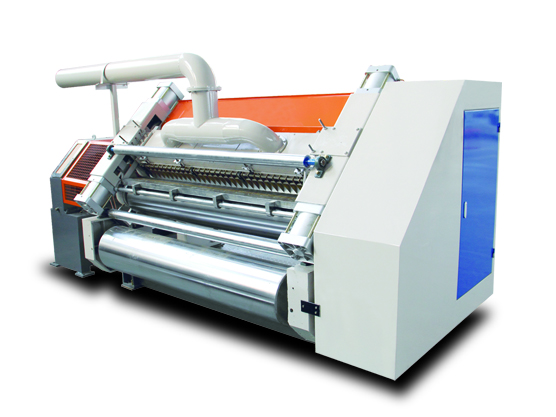

Structural features：

Using suction hood structure，matches strong high pressure blower.Suction with a silencer.,air source and electrical control focux on the same operation counter，away from the motor is not less than 1.5m，operating side closed full cover.
base and wallboard cast iron wall，Wallboard thickness130mm.universal Joints.
corrugated roller material adopt 48CrMoalloy steel，quenched,Laser hardening，Surface finish，main roller of corrugated diameter¢ 280mm，surface hardnessHRC60degree above.The key parts of the tile and pressure roller bearings Wafangdian produce high temperature bearings.
pressure roller ¢ 284mm,surface grinding and chrome-plated；cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices).
pneumatic control glue to glue back, glue roller diameter ￠215mm,Engraved polished surface after a 25-line pit style textured machined chrome plated，after scraping the roller surface polished hard chrome plated.
Corrugated roller, pressure roller materials provided by the Central Plains Steel，High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.
preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm，connecting with metal Hose.

technical parameters：
1、effective width：1600mm
2、operation direction：left or right（Determined in accordance with customer plant）
3、design speed：100m/min
4、temperature range：200—260℃
5、corrugate flute:UV type or UVV type

roller diameter parameters：
1、corrugated roll diameter：￠280mm
2、pressure roll diameter：￠285mm
3、glue roll diameter：￠216mm
4、preheat roll diameter：￠320mm

Powered motor parameters：
1、main drive motor：7.5KW rated voltage：380V 50Hz continuous（S1）working system
2、suction motor:7.5KW rated voltage：380V 50Hz continuous（S1）working system

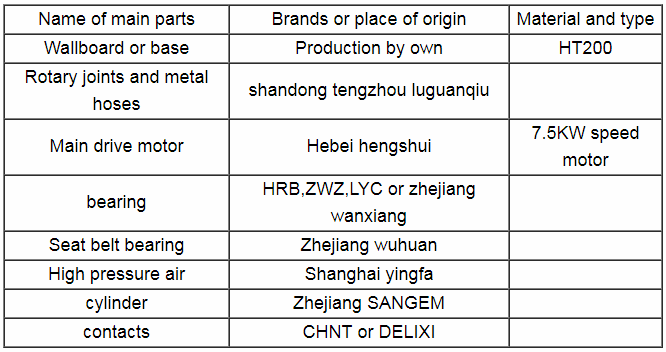

Mainly purchased parts, raw materials and origin：
