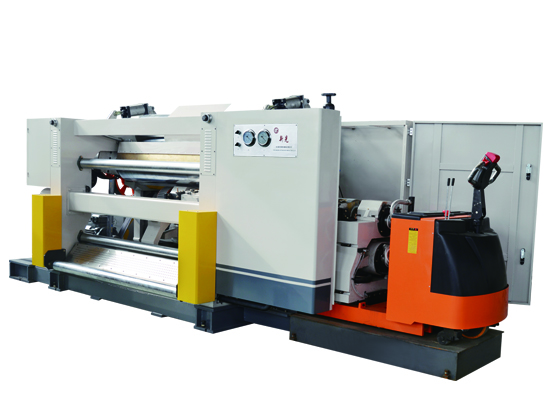

Single Facer Machine SF-320E/360E

Get Latest Price

Payment Type:	T/T
Incoterm:	FOB,CIF
Min. Order:	1 Others
Transportation:	Ocean
Port:	Qingdao Port,Tianjin Port

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Structural features：

design speed：150m/min.
effective width：1800mm.
main corrugated roller：￠320mm（According flute differ），pressure roller￠370mm，preheat roller￠400mm.
using negative pressure type design, low heat loss，helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, pressure uniform, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.
quickly change rollers in 10 minutes, while change corrugated roller with the electric trolley loading,the entire group of corrugating with motor drive，put into the machie,fixed to the machine base,only need a buttons can complete the replacement quickly and easily.
corrugated roll adopt 48CrMo high quality alloy steel,dealing with heating, after grinding tungsten carbide surface treatment.
corrugated roll and pressure roll adopt the airbag control system with high stability, at the same time with pneumatic control buffer effect.
Glue volume control with electric adjustment，rubber septum electric device，the glue system can operate independently when the motor stops,prevent glue exhausted.
the moveable type glue unit is convenient to clean and maintain.
easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.
built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture.
main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly.

Technical parameters：

1、effective width：1800mm

2、operation direction：left or right（Determined in accordance with the customer’s facility)

3、design speed：150m/min

4、temperature range：160—200℃

5、air source：0.4—0.9Mpa

6、steam pressure：0.8—1.3Mpa

7、corrugated flute:（UV type or UVV type）

Roller diameter parameters：

1、diameter of up corrugated roller：￠320mm

2、diameter of pressure roller：￠365m

3、diameter of glue roller：￠270mm

4、diameter fixed paste roll ：￠153mm

5、diameter of preheater：￠400mm

Powered motor parameters：

1、main frequency drive motor：30KW rated voltage：380V 50Hz Continuous (S1) working standard

2、suction motor：15KW rated voltage：380V 50Hz Continuous (S1) working standard

3、glue reducer linear actuator：30W rated voltage：24V short（S2） working standard

4、glue gap motor：200W*2 rated voltage：380V 50Hz short（S2） working standard

5、glue pump motor： 2.2KW rated voltage：380V 50Hz Continuous (S1) working standard

6、glue frequency motor:3.7KW rated voltage：380V 50Hz Continuous (S1) working standard

We are a manufacturing enterprise specializing in the production of Corrugated Cardboard Production Line and Corrugated Board Production Line. In addition to the complete production line, standalone Cardboard Machinery is also being sold. Having a professional technical team and complete production equipment, we can provide customers with high-quality and efficient products and services.
