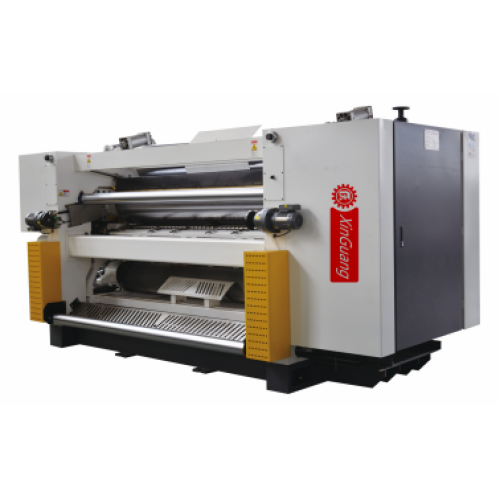

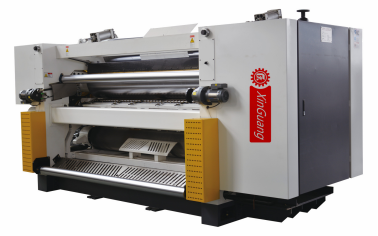

SF-360E Multi-Cassette Positive Pressure Single Facer

SF-360E Multi-Cassette Positive Pressure Single Facer

Get Latest Price

Min. Order:

1 Others

Contact Now

Product Description

Packaging & Delivery

Product Description

Packaging & Delivery

Selling Units

Others

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Technical parameters：

Working width 2200mm

Design speed 200m/min

Economic speed 120-180m/min

Paper feed range 2250--850mm

Steam temperature 200℃

Steam pressure 1.2Mpa

Working power 380V 50Hz 55KW

Structural feature：

Main corrugating roller：￠360mm（According flute differ），pressure roller￠415mm，preheat roller￠400mm.
Using negative pressure design, lower heat consumption, helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, because the pressure evenly, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.
Quickly change rollers in 10 minutes, while change corrugated roller with the electric trolley loading,put into the machine，and air pressure system will lock it,fixed to the machine base，only need a few buttons can complete the replacement quickly and easily.
Corrugated roller adopt50CRMO high quality alloy steel, dealing with heat,after grinding tungsten carbide surface treatment.
Corrugated roller, pressure roller adopt airbag control system having high stability, having the barometric pressure control buffering effect at the same time.
Glue volume control with electric adjustment，rubber septum electric device，the glue system can operate independently when the motor stops,prevent glue exhausted.
The moveable type glue unit is convenient to clean and maintain.
Easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.
Built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture.
Main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly.

Main component parameters：

Part name Craftsmanship	Specification	Material	Surface treatment
Corrugated roller	Main roll￠360mm	50CrMAo合金钢	Tungsten carbide treatment
Pressure roller	￠415mm	45＃ steel	Hardened round grinding chrome plating polishing
Glue roller	￠269mm	45＃ steel	Round grinding and pressing pit mesh chrome plating
Fixed paste roller	￠153mm	45＃ steel	Round grinding chrome
Preheat roller	￠400mm	Q235B	Round grinding chrome
Paper guide roller	￠110 mm	45＃ steel	Round grinding chrome

Main dynamic parameter：

Name	Power	Voltage	Frequency
Main drive motor	30KW	380V	50HZ
High-pressure suction motor	15KW	380V	50HZ
Adjustable glue push rod	30W	380V	50HZ
Glue adjustment motor	200W*2	380V	50HZ
Rubber pump motor	2.2KW	380V	50HZ
Motor of glue department	3.7KW	380V	50HZ

Main parts brand and origin：

Serial number	Main part name	Brand or place of origin	Remarks
01	Box rack	Self-produced	HT250
02	Rotary joint and metal hose	FuJian
03	Main drive motor	YongShun	30KW Inverter motor
04	RV reducer	Taiwan city-state or Wanxin
05	Bearing	C&U
06	Seat belt bearing	FuJian
07	High pressure fans	Shanghai yingfa	15KW
08	Pneumatic Components	AirTac
09	The electromagnetic valve	AirTac
10	Low-voltage electrical appliances	SIEMENS	Contactor, relay, button
11	Frequency controller and PLC	Delta or HuiChuan
12	Touch screen	Taiwan Weilun or Kunlun Tongtai
