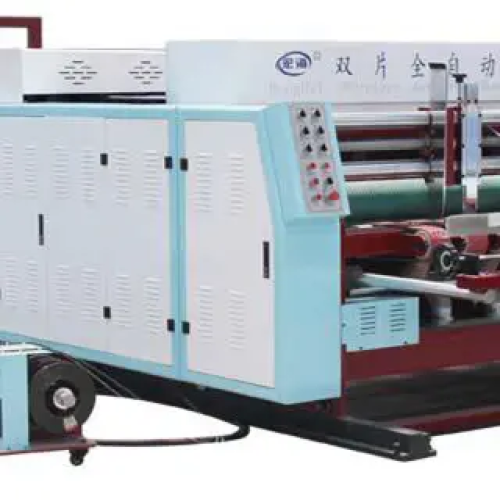

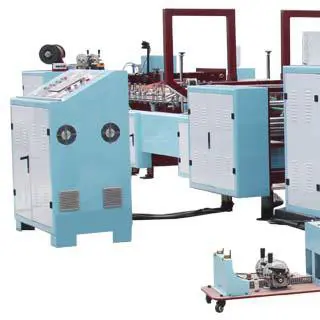

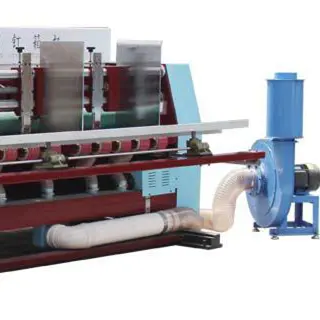

A. Paper feeding department: 1. The main motor adopts frequency conversion speed regulation, the system is noiseless, and the speed regulation is flexible and stable. 2. Double-servo paper feeding method is adopted to make adjustment stable, efficient and accurate. 3. The front paper feeding part can be adjusted electrically, which is suitable for the paper feeding needs of various carton boxes, which is convenient and quick. 4. Equipped with side flapping device to ensure that the paper is not skewed. B. Nail box part of the head group: The front edge is sent into the nail box part of the head group, and then patted into place on the front side of the nail box. C. Paper receiving part: 1. The paper receiving part is the buffer connection of the folding part immediately after the cardboard nailed out by the head group is sent out. D. Folding part 1. Linkage with paper feeding part, frequency conversion speed regulation. 2. Imported porous belt is used to convey the cardboard, which is automatically folded and absorbed in the whole process, effectively avoiding the skew, slipping and stacking of various cardboards such as heavy boxes, film boxes, glazing boxes, etc., making the whole machine more stable and efficient .
Hebei Dongguang County Honghai Carton Equipment Manufacturing Co., Ltd. E. Correction Department 1. This machine will have a shaping device before the nail box after the folding part. Before the nail box, the folded carton will be reshaped and patted to ensure the nailing. The carton that came out had no scissors. 2. Servo motor is used in the correction part. F. Nail box section 1. The nail box head is made of special material, which is wear-resistant and not easy to damage. 2. The characteristic of this machine is that the head is directly driven by a servo motor, and the speed is stable and accurate. 3. Two reels of 20kg large reel flat wire automatic wire feeding device is used for the nailing line at a time, which reduces the number of wire changes and improves production efficiency. 4. This machine can perform multi-function operations of single nails, double nails, strengthening nails, and head and tail nails on cartons. 5. The nailing speed can reach 700-800 nails/minute per minute. G. Counting and stacking output section After the nail box section completes the carton, the counting and stacking section will automatically send it out and pack it.
Main mechanical parameters:
Model and parameters SQDJ-2500 SQDJ-2800 SQDJ-2500 SQDJ-2800
Maximum size (A+B) 1250 (single piece)1100 (double piece) 1550 (single piece) 1400 (double piece)
Minimum size (A+B) 650 650
Maximum size (C+D+C) 860 860
Minimum size ( C+D+C) 360 360
Minimum flap C 25 25
Maximum flap C 500 500
Maximum width B 500 650
Minimum width B 200 200
Maximum length A 900 1050
Minimum length A 450 450
Maximum height D 700 700
Minimum height D 110 110
Nail tongue width E 30-35 30-35
Nail pitch (mm) 30-120 (high-speed mode) 30-120 (high-speed mode)
Number of nails 2-99 2-99
Mechanical speed (nails/minute) 700-800 700-800
Mechanical weight (T) 12T 14T
